Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
    GC0163212Courtesy of CHRYSLER GROUP, LLC

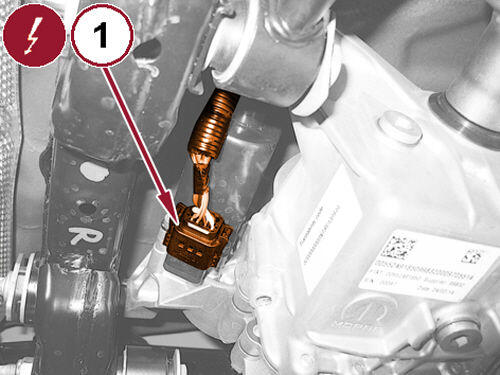

  2. Disconnect the axleshaft actuator wire harness connector (1).
    GC0164411Courtesy of CHRYSLER GROUP, LLC

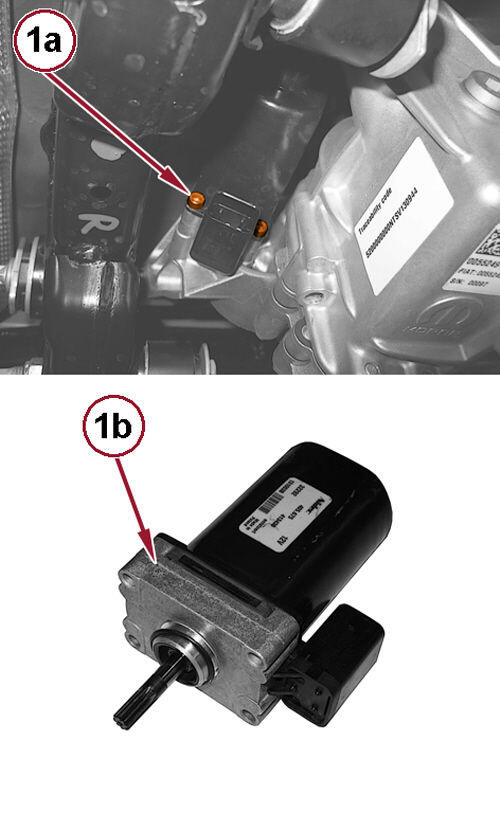

  3. Remove the axleshaft actuator fasteners (1a).
  4. Remove the axleshaft actuator (1b).
