Removal And Installation: Removal
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Remove the tire and wheel assembly. Refer to REMOVAL
.

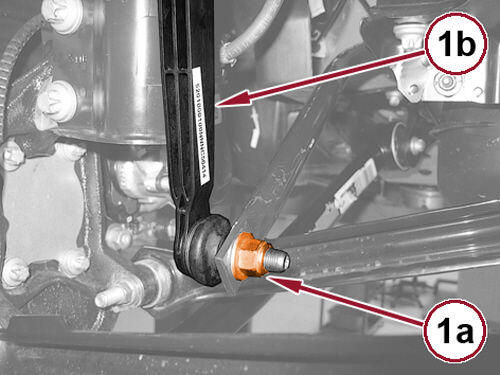

- While holding the stem with the appropriate tool, remove the sway bar link to stabilizer bar nut (1a) and DISCARD
.NOTE:
Perform the same procedure on the opposite side.

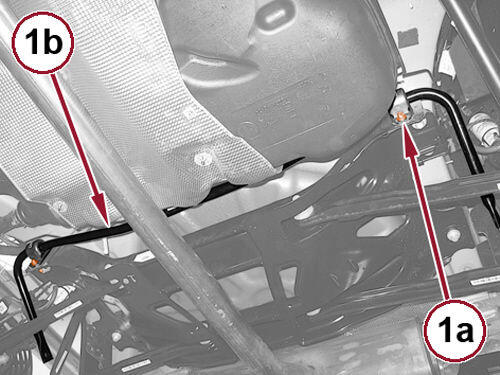

- Remove the stabilizer bar bracket bolts (1a).
- Remove the stabilizer bar (1b).
