Removal And Installation: Removal
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Remove the tire and wheel assembly. Refer to REMOVAL
.

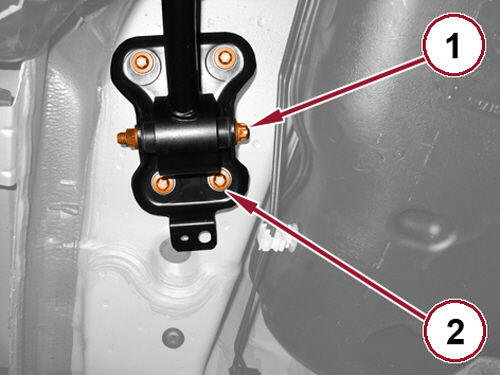

- Remove the trailing link to body bracket bolt (1) from the body bracket (2).

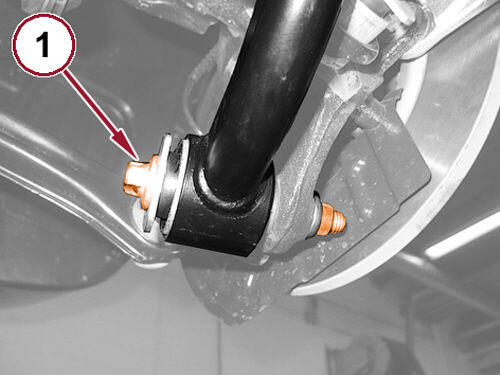

- Remove the trailing link to knuckle bolt (1), and remove the trailing link from the vehicle.
