Removal And Installation: 4X4: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the tire and wheel assembly. Refer to REMOVAL .
  3. Remove the rear brake rotor. Refer to ROTOR, BRAKE, REAR, REMOVAL .
  4. Remove the three brake rotor shield bolts and remove the brake rotor shield.
  5. Remove the rear hub and bearing assembly. Refer to HUB AND BEARING, REMOVAL AND INSTALLATION .

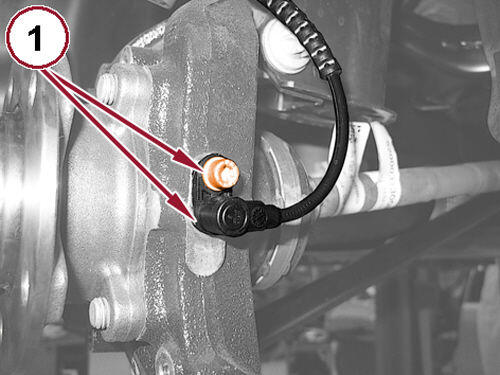

    GC0166080Courtesy of CHRYSLER GROUP, LLC
  6. Remove the wheel speed sensor bolt (1) and the wheel speed sensor.
    GC0166028Courtesy of CHRYSLER GROUP, LLC
  7. Remove the rear trailing link bolt (1).
  8. Remove the rear lower control arm bolt (2).
  9. Remove the front lower control arm bolt (3) and DISCARD  .

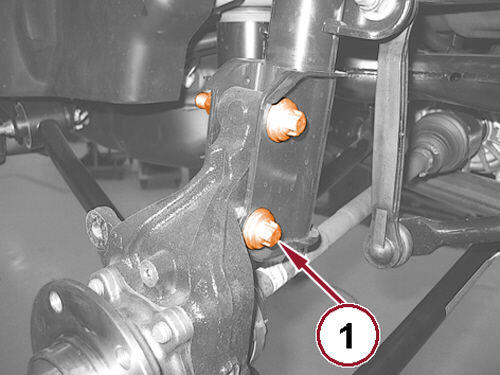

    GC0163964Courtesy of CHRYSLER GROUP, LLC
  10. Remove the rear strut lower bolts (1).

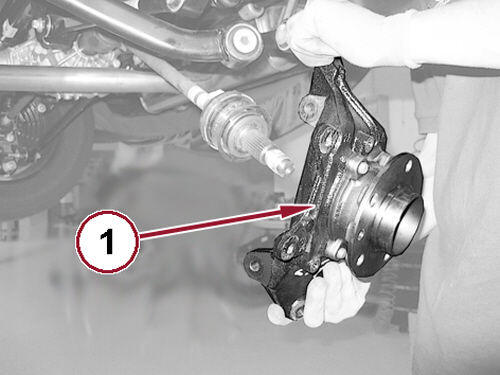

    GC0164887Courtesy of CHRYSLER GROUP, LLC
  11. Remove the rear knuckle (1) from the vehicle.
