Removal And Installation: 4X4: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
Remove the tire and wheel assembly. Refer to REMOVAL .
Remove the rear brake rotor. Refer to ROTOR, BRAKE, REAR, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

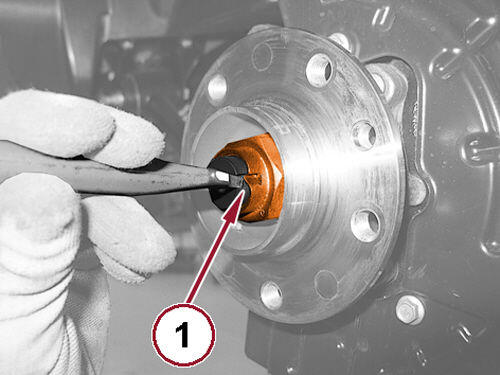

With the appropriate tool, unstake the hub nut (1).

Courtesy of CHRYSLER GROUP, LLC

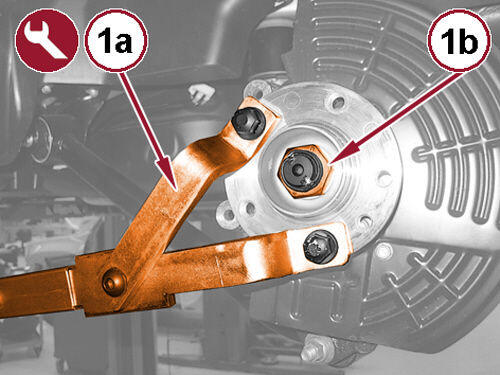

Install the special tool 1870815000 (1a), and remove the hub nut (1b).

Courtesy of CHRYSLER GROUP, LLC

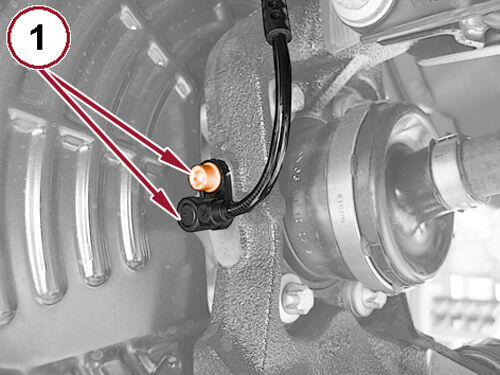

Remove the wheel speed sensor to knuckle bolt (1), and remove the wheel speed sensor (1).

Courtesy of CHRYSLER GROUP, LLC

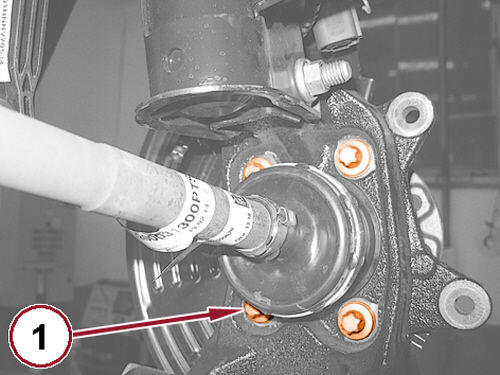

Press the halfshaft inboard slightly and remove the hub and bearing to knuckle bolts (1).

Courtesy of CHRYSLER GROUP, LLC

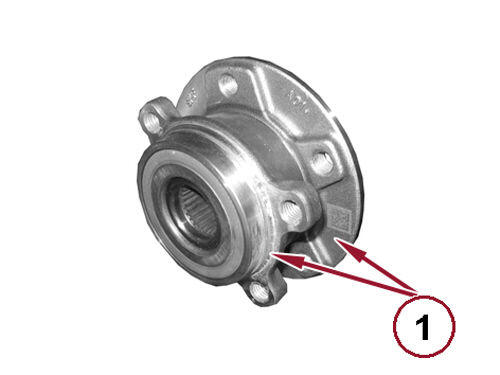

Remove the hub and bearing from the vehicle (1).
