Removal And Installation: 4X2: Removal
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Remove the tire and wheel assembly. Refer to REMOVAL
.

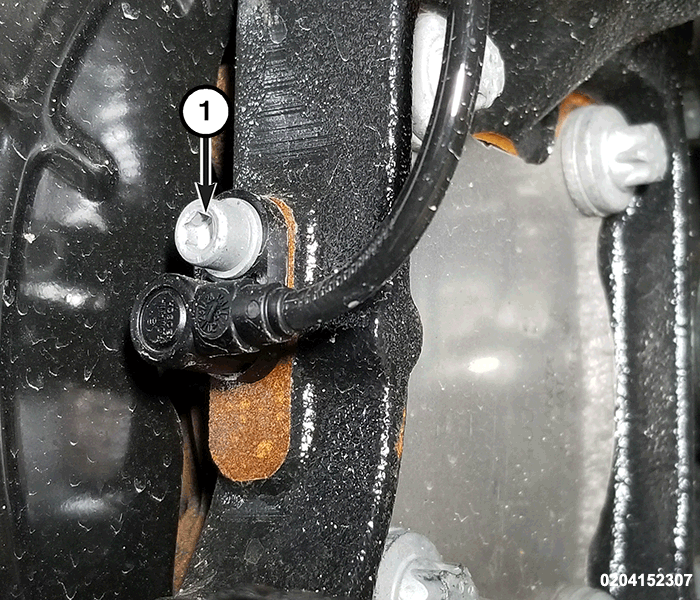

- Remove the wheel speed sensor to knuckle bolt (1), and remove the wheel speed sensor.
- Remove the rear brake rotor. Refer to ROTOR, BRAKE, REAR, REMOVAL
.

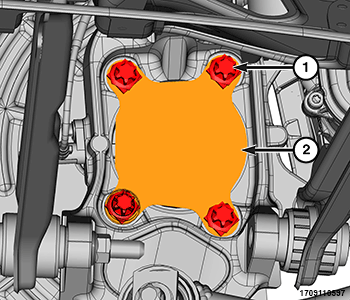

- Remove the four hub and bearing bolts (1), and remove the closeout flange (2).

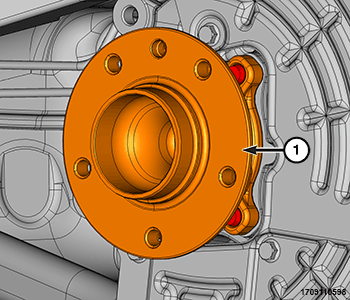

- Remove the hub and bearing (1).
