Removal And Installation: Front: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the tire and wheel assembly. Refer to REMOVAL .

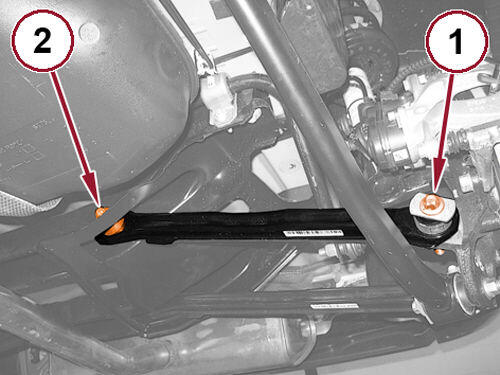

    GC0165533Courtesy of CHRYSLER GROUP, LLC
  3. Remove and DISCARD  the front lower control arm to knuckle bolt (1).
  4. Remove the front lower control arm to crossmember bolt (2), and remove the front lower control arm.
