Description And Operation: Description

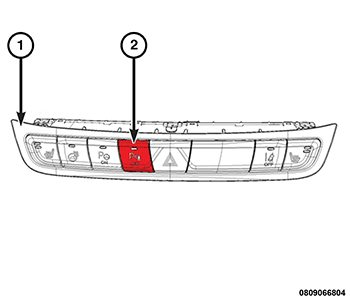

The park assist OFF switch (2) and the Parallel and Perpendicular Park Assist (PPPA) ON switch are integral to the instrument panel switch pod (1), which is secured to the instrument panel center stack just below the Radio Receiver Module (RRM).
The park assist OFF switch push button is clearly identified with a white International Control and Display Symbol graphic for Parking Aid and the text OFF . The PPPA ON switch push button is clearly identified with white International Control and Display Symbol graphics for Parking and Electric Power Steering along with the text ON .
An amber Light Emitting Diode (LED) unit is illuminated behind a small clear plastic jewel-like lens in the park assist OFF push button to give a visual indication whenever the park assist system has been manually disabled or if a system fault is monitored. Another amber LED unit is illuminated in the PPPA ON push button whenever that system has been enabled. Both switches are only functional while the status of the ignition is ON. The switch buttons also have panel lamps dimmer controlled illumination for night visibility.
All of the circuitry and components of the park assist OFF switch and the PPPA ON switch are contained within a molded black plastic instrument panel switch pod housing. A single connector receptacle is integral to the back of the switch pod housing. The switch is connected to the vehicle electrical system through a dedicated take out and connector of the instrument panel wire harness.
The park assist OFF switch and the PPPA ON switch cannot be adjusted or repaired and, if either switch is ineffective or damaged, the entire instrument panel switch pod unit must be replaced with a new unit.
