Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear spoiler. Refer to SPOILER, REMOVAL .

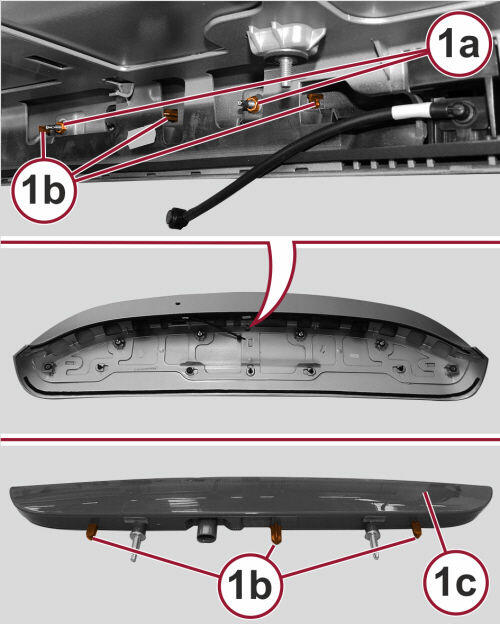

    GC0163506Courtesy of CHRYSLER GROUP, LLC
  2. Working on the rear spoiler, remove the fasteners (1a) and retainers (1b). Remove the Center High Mount Stop Lamp (CHMSL) (1c).
