Description And Operation: Description
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

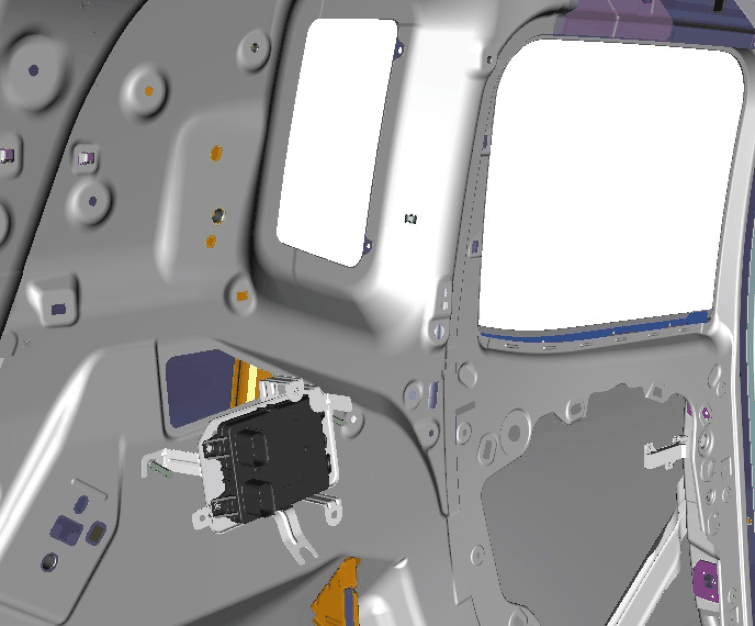

The vehicle can be equipped with a fixed tow hook. The external lighting of any trailer receives power supply from the Trailer Tow Module (TTM). The TTM is located on the rear left side of the vehicle, above the wheel arch.

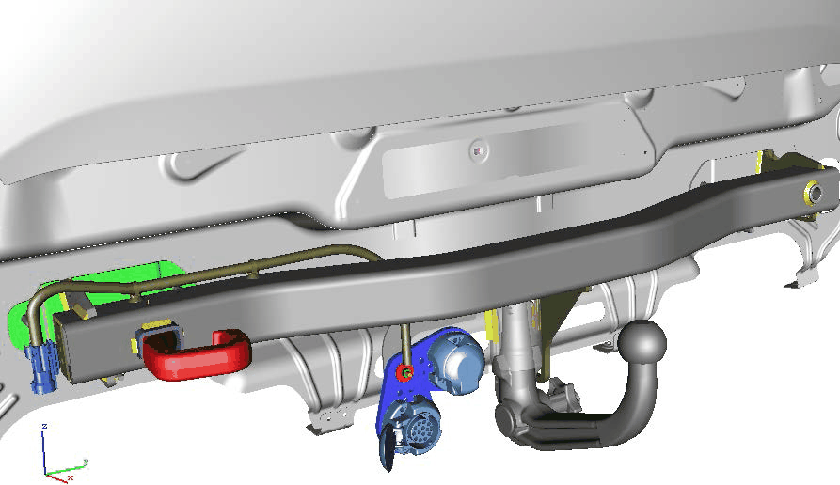

The TTM is electrically connected to the wiring of the trailer through a connector near the tow hook.
The TTM module shows all the rear light activation controls from the vehicle on the trailer.
