Wiring, MOPAR Connect TELEMATIC Box: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the left A-pillar trim panel. Refer to PANEL, A-PILLAR TRIM, REMOVAL .
  3. Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL .

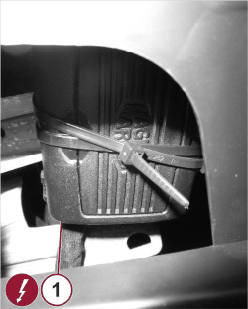

    GC0180784Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the T-Box module electrical connection (1).

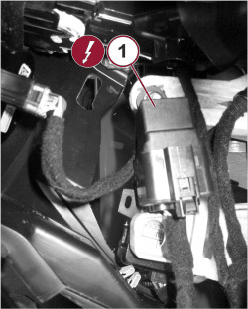

    GC0180760Courtesy of CHRYSLER GROUP, LLC
  5. Remove the T-Box relay (1) complete with relay holder, releasing it from the cradle underneath, fixed to the bottom bracket.
    GC0180737Courtesy of CHRYSLER GROUP, LLC
  6. Remove the nut (1) on the earth pin of the front pillar area open the cable retainers and remove the T-Box harness earth ring.
    NOTE:

    The T-Box harness earth ring is the one at 90° to the normal production cables, if present.

  7. Cut the insulating tape used to compact the T-Box harness with the car's main wiring, taking the greatest care not to damage the normal production wiring.
    GC0180793Courtesy of CHRYSLER GROUP, LLC
  8. Cut the thermal shrinking connection tubes (1) used to connect the ignition signal (+50) to the T-Box relay.

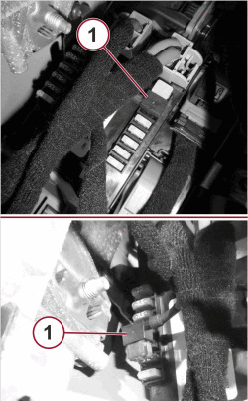

    GC0179294Courtesy of CHRYSLER GROUP, LLC
  9. Remove the two turret fuse-holders (1) from the Body Computer and recover the two original fuses F36 (+30) and F51 (+15) fitted on them.
    GC0178882Courtesy of CHRYSLER GROUP, LLC
  10. Disconnect the Body Computer's D connector (1) and remove the block which covers the internal connections.
    GC0178897Courtesy of CHRYSLER GROUP, LLC
  11. Remove the two cables CAN L (white) and CAN H (blue) of the T-Box harness from the position corresponding to pins 52 (CAN L) and 51 (CAN H) respectively of the connector (1a) using a suitable extractor tool (1b).
    GC0178928Courtesy of CHRYSLER GROUP, LLC
  12. Disconnect the Body Computer's F connector and remove the block which covers the internal connections.
    GC0178977Courtesy of CHRYSLER GROUP, LLC
  13. Remove the door opening signal cable (green) of the T- Box harness from the position corresponding to pin 11 of the connector (1a) using a suitable extractor tool (1b).
  14. Cut the insulating tape and ties used to compact the T-Box harness with the car's main wiring, taking the greatest care not to damage the normal production wiring, then remove the T-Box wiring.
