Wiring, MOPAR Connect TELEMATIC Box: Installation

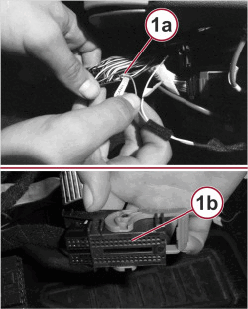

- Connect the door opening signal cable (1a) (green) of the new T-Box harness to the pin 11 position and replace the internal connection cover block (1b) of the Body Computer F connector.NOTE:
When done, restore the connector wiring with a new tie.

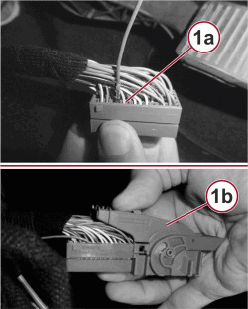

- Connect the two cables (1a) CAN L (white) and CAN H (blue) of the new T-Box harness to the position corresponding to pins 52 (CAN L) and 51 (CAN H) respectively and replace the block which covers the internal connections of the Body Computer D connector.NOTE:
When done, restore the connector wiring with a new tie.
- Fit the fuses F51 (+15) and F36 (+30) (1) recovered earlier during disconnection on the turret fuse-holders of the new T-Box harness.

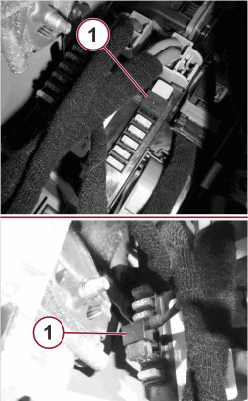

- Connect the connectors (1) of the new T-Box harness (with twin fuse) in the positions previously occupied by the corresponding fuse-holders of the Body Computer.NOTE:
Take great care not to get the cables to be joined dirty as this will adversely affect the continuity of the electrical conduction. While heating the thermal shrinking tubs, as a result of the high temperatures reached, the drier and the heat shield must not, under any circumstances, come into contact with cladding parts or other components.

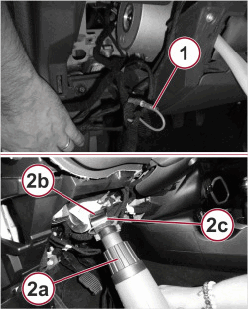

- Fit the thermal shrinking connection tubes (1) onto the two sets of harness wires and use an air heater (2a) with heat shield (2b) to heat the thermal shrinking tube (2c) until the ring of solder melts; then wait for it to cool.NOTE:
The air heater (drier) used in this procedure is commercially available.
NOTE:Apply insulating tape to the two wires individually and then combine the wires with the main wiring and tape to create a more compact bundle.
- Install the ground wire ring from the new T-Box harness onto the ground stud on top of the cables already present and tighten the nut (1) securely.NOTE:
If there are any cables already connected to this ground stud, take care to fit the T-Box harness ground ring in such a way that it is at 90° to the previous ones.

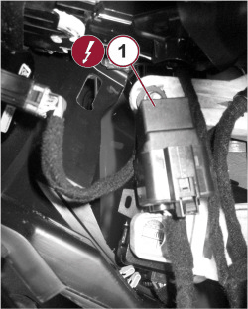

- Fit the relay holder with the T-Box relay (1) on the cradle left in place earlier.
- Connect the new T-Box harness (1) to the T-Box module, taking care to pass it through the inside of the dashboard so that it does not interfere with subsequent reassembly of the internal cladding components removed previously.
- Fit the wiring together with the other cables and fasten the cable retainer (1).

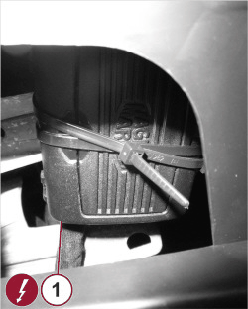

- Tie the wiring as shown and secure the T-Box harness to the vehicle wiring with the last ties (2).
- Install the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION .
- Install the left A-pillar trim panel. Refer to PANEL, A-PILLAR TRIM, INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
- On completion of installation of the T-Box module, connect the scan tool to the car's EOBD socket, locate the BCM module and check for errors.
