Box, MOPAR Connect TELEMATIC - RHD: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
Remove the glove compartment. Refer to GLOVE BOX, INSTRUMENT PANEL, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Locate the top hole in the dashboard mounting bracket on which the T-Box module is installed.

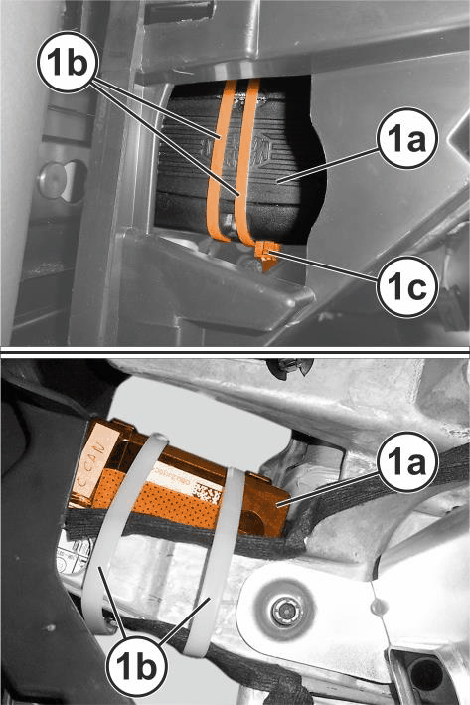

Disconnect the T-Box module wire harness connector (1c).
Cut the fixing ties (1b) and remove the T-Box module (1a) from the biadhesive Velcro behind it.
NOTE:
Remove the biadhesive Velcro from the T-Box module and the dashboard mounting bracket.
