Box, MOPAR Connect TELEMATIC - LHD: Installation
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
- Apply a strip of biadhesive Velcro (1) to the back of the T- Box module.
- Apply the Coroplast covering tape (1) to the parts of the T- Box module in contact with the vehicle to prevent vibration noise when it is mounted on the car.

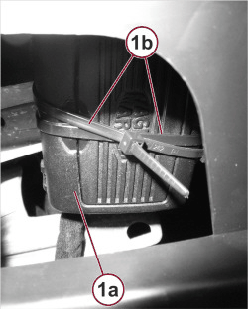

- Install the T-Box module (1a) next to the top hole in the dashboard mounting bracket and secure it with the biadhesive Velcro and retainer ties (1b).
- Connect the T-Box module wire harness connector (1).
- Install the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
- On completion of installation of the T-Box module, connect the scan tool to the car's EOBD socket, locate the BCM module and check for errors.
