Initial Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the left A-pillar trim panel. Refer to PANEL, A-PILLAR TRIM, REMOVAL .
  3. Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL .
    GC0180763Courtesy of CHRYSLER GROUP, LLC
  4. Clean the contact surface where the T-Box module will be attached (1) using isopropyl alcohol, heptane or an equivalent degreaser.
    GC0179366Courtesy of CHRYSLER GROUP, LLC
  5. Apply a strip of adhesive Velcro (1) to the back of the T-Box module.
    GC0180722Courtesy of CHRYSLER GROUP, LLC
  6. Apply the Coroplast covering tape (1) to the parts of the T-Box module in contact with the vehicle to prevent vibration noise when it is mounted on the vehicle.
  7. Apply a strip of adhesive Velcro to the dashboard's internal bracket.
    GC0180766Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    For more secure mounting the ties should be used so that they cross on the front of the T-Box module.

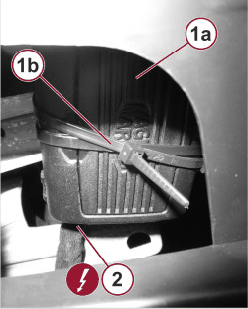

  8. Install the T-Box module (1a) next to the top hole in the dashboard mounting bracket and secure it with the biadhesive Velcro and the two ties (1b) supplied.
  9. Connect the kit wiring harness (2) to the T-Box module, taking care to pass it through the inside of the dashboard so that it does not interfere with subsequent reassembly of the internal cladding components removed previously.
    GC0180714Courtesy of CHRYSLER GROUP, LLC
  10. Install the T-Box module relay mounting cradle (1a) on the bottom hole in the dashboard mounting bracket and secure it with the fastener (1b) with nut and two washers supplied.
  11. Install the relay holder (2) with the T-Box relay on the cradle fitted earlier and connect it to the T-Box harness.
    GC0180742Courtesy of CHRYSLER GROUP, LLC
  12. Remove the ground nut (1) from the front pillar area and open the cable retainers.
    NOTE:

    If there are any cables already connected to this ground stud, take care to fit the T-Box harness ground ring in such a way that it is at 90° to the previous ones.

  13. Fit the ground ring of the T-Box harness onto the ground stud on top of the cables already present and tighten the nut (1) securely.
    GC0180718Courtesy of CHRYSLER GROUP, LLC

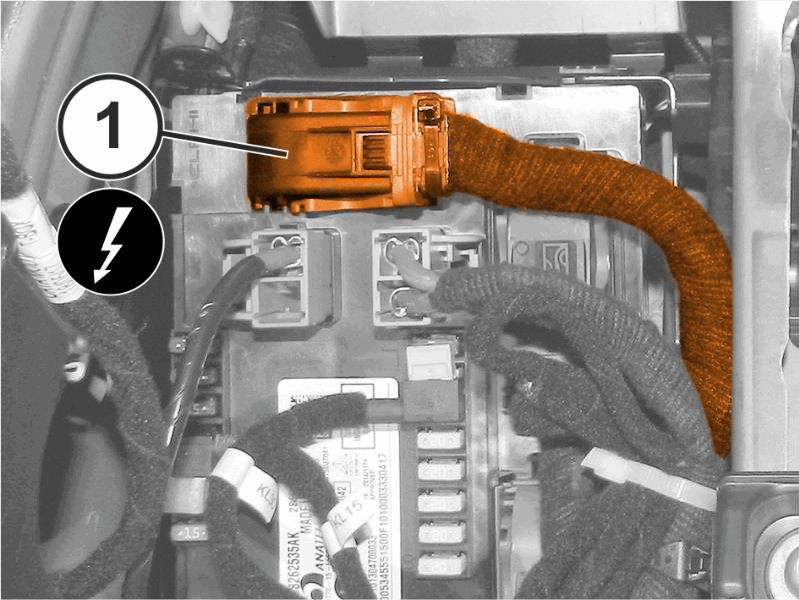

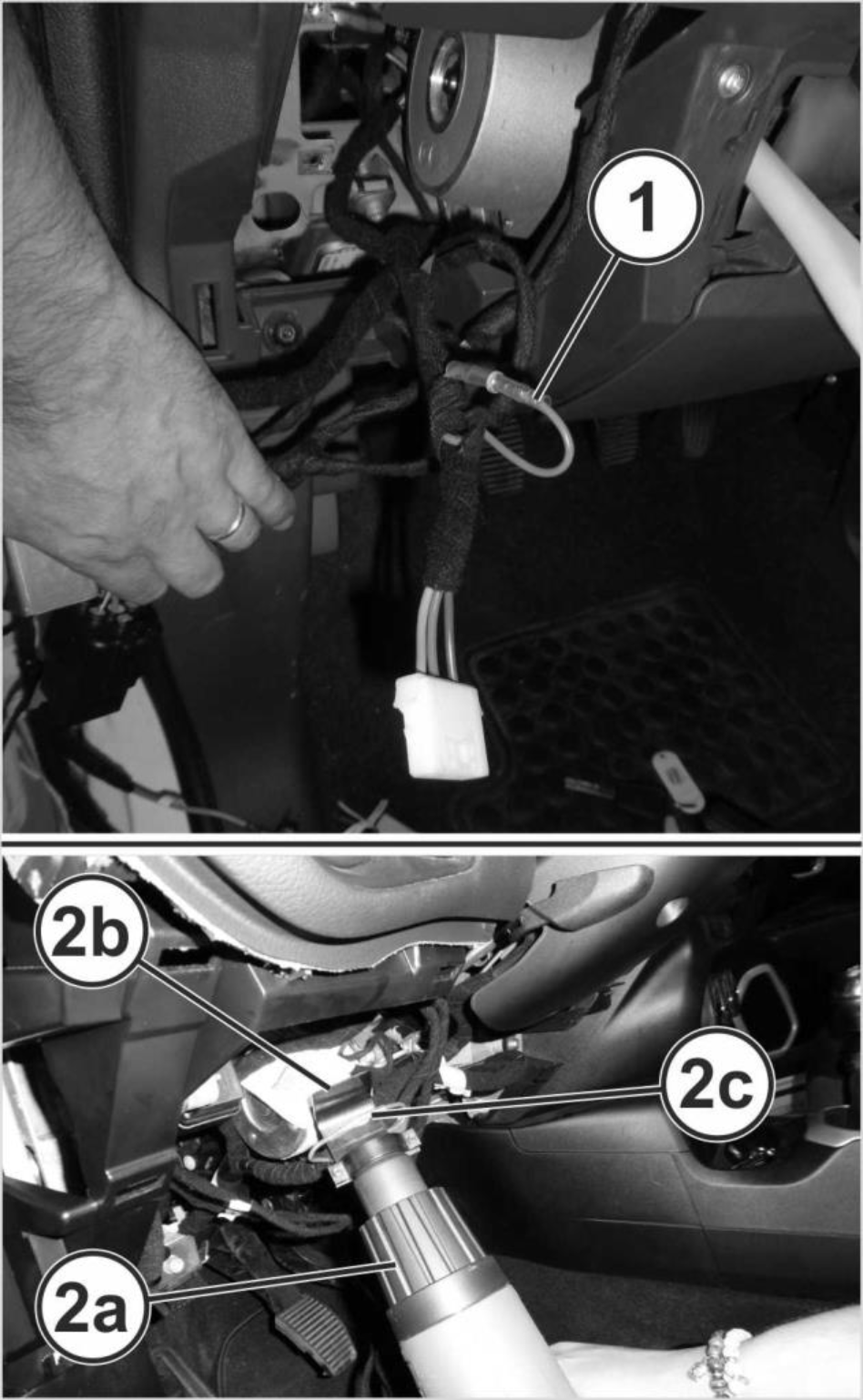

  14. Disconnect the wire harness connector C (1) from the Body Control Module (BCM), and remove the inner connection covering block.
    GC0179414Courtesy of CHRYSLER GROUP, LLC
  15. Locate pin 1 on the connector, then cut and remove the sheathing of the vehicle wiring.
    NOTE:

    Take great care not to get the cables to be joined dirty as this will adversely affect the continuity of the electrical conduction. While heating the thermal shrinking tubs, as a result of the high temperatures reached, the drier and the heat shield must not, under any circumstances, come into contact with cladding parts or other components.

  16. Install the thermal shrinking connection tubes (1) onto the two sets of cables within the wiring.
  17. Use an air heater (2a) with heat shield (2b) to heat the thermal shrinking tubes (2c) until the ring of solder melts; then wait for it to cool.
    NOTE:

    The air heater (drier) used in this procedure is commercially available.

    NOTE:

    Apply insulating tape to the two wires individually and then combine the wires with the main wiring and tape again to create a more compact bundle.

    GC0179310Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Fuse F36 is the third from the top (blue) in the right- hand row in the Body Computer.

  18. Remove fuse F36 (+30) (1) from the Body Computer and fit it into the turret fuse-holder of the T-Box harness.
    GC0179396Courtesy of CHRYSLER GROUP, LLC
  19. Connect the connector of the new T-Box harness (with twin fuse) (1) in the position previously occupied by fuse F36 of the Body Computer.
    NOTE:

    Fuse F51 is the third from the top (red) in the left-hand row in the Body Computer.

  20. Remove fuse F51 (+15) from the Body Computer and fit it into the turret fuse-holder of the T-Box harness.
  21. Connect the wire harness connector of the T-Box harness (with twin fuse) (1) in the position previously occupied by fuse F51 of the Body Computer.
    GC0180799Courtesy of CHRYSLER GROUP, LLC

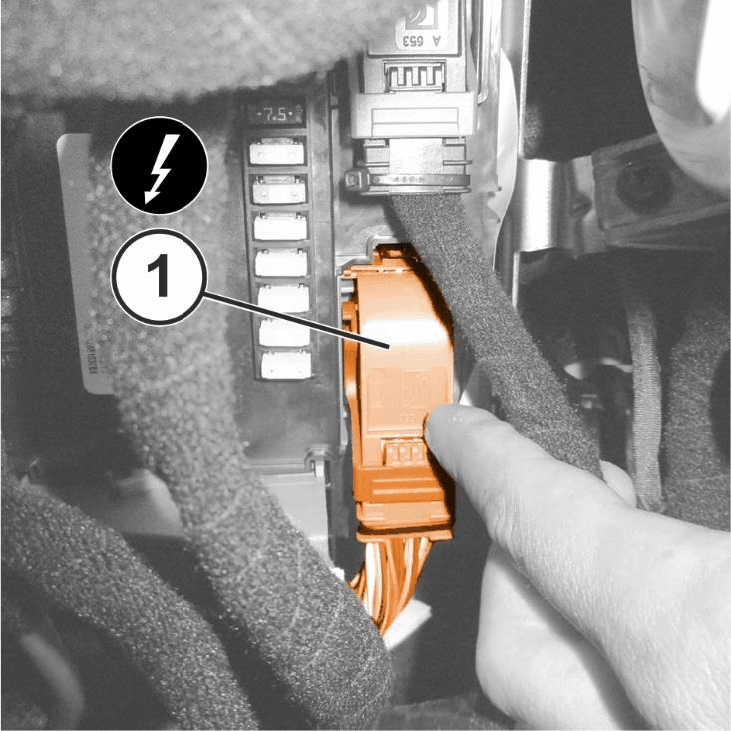

  22. Disconnect the wire harness connector D (1) from the BCM.
    GC0178843Courtesy of CHRYSLER GROUP, LLC

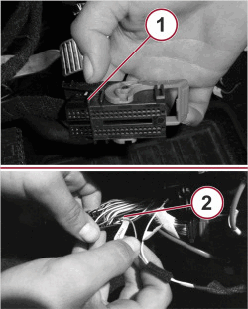

  23. Remove the block (1) which covers the internal connections (2).
    GC0180797Courtesy of CHRYSLER GROUP, LLC

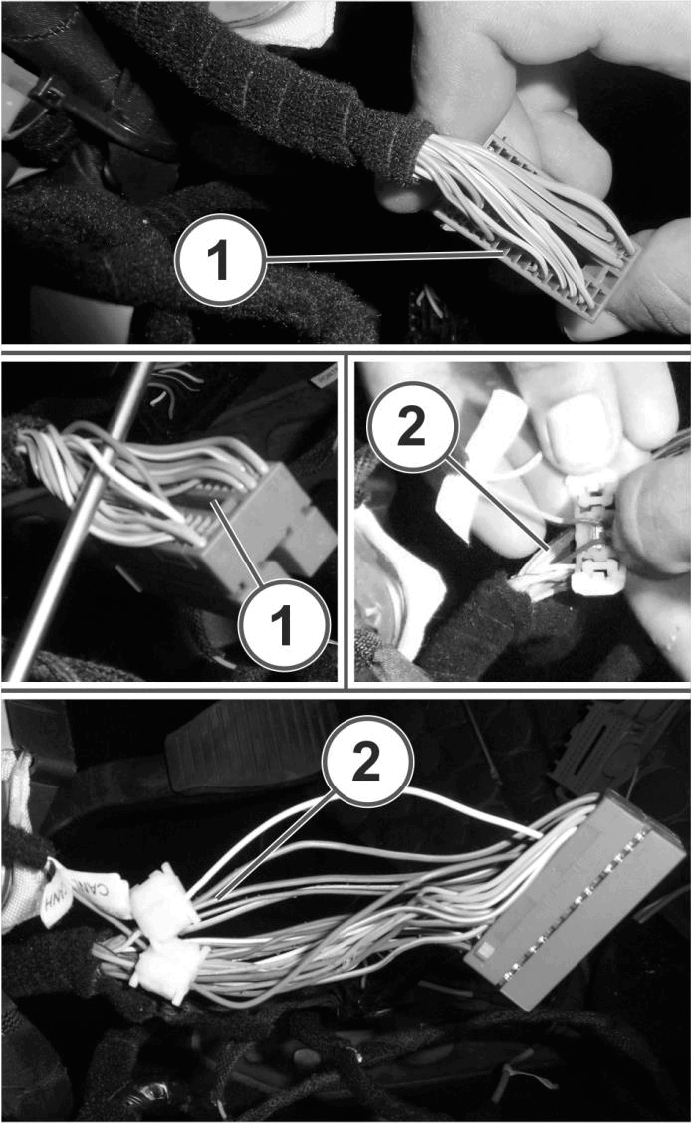

  24. Locate pins 51 CAN-H and 52 CAN-L (1).
  25. Connect the two cables CAN L (white) and CAN H (blue) of the T-Box harness (2) to the position corresponding to pins 52 (CAN L) and 51 (CAN H) respectively and replace the block which covers the internal connections of the Body Computer D connector.
    NOTE:

    When done, restore the connector wiring with a new tie.

    GC0180709Courtesy of CHRYSLER GROUP, LLC

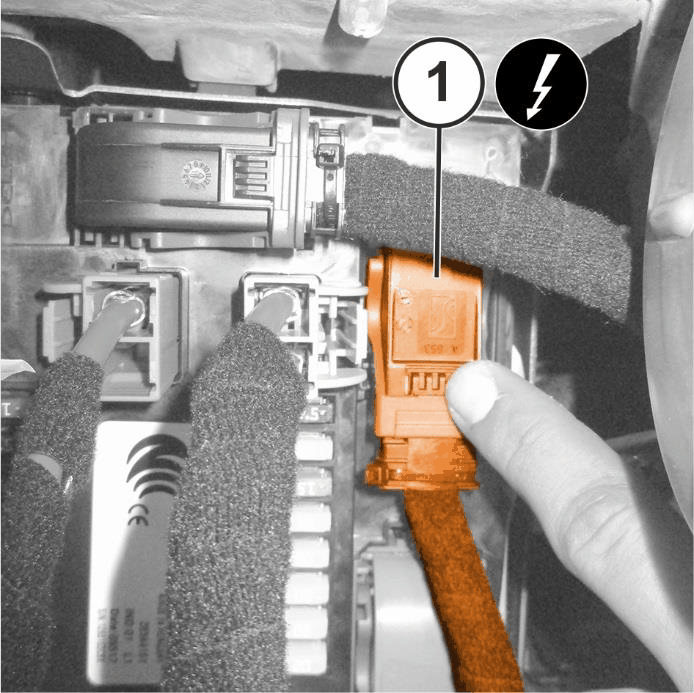

  26. Disconnect the wire harness connector F (1) from the BCM and remove the block which covers the internal connections.
    GC0180798Courtesy of CHRYSLER GROUP, LLC

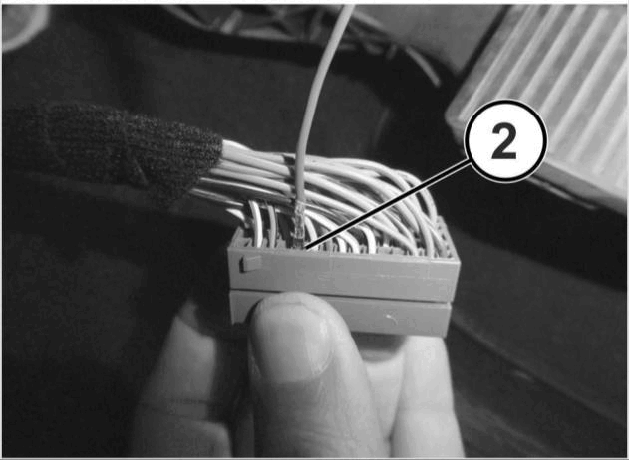

  27. Connect the door opening signal cable (green) of the new T-Box harness to the pin 11 position (2) and replace the internal connection cover block.
    GC0179308Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Tape should be applied to the bundle of cables to increase its compactness.

  28. Install the wiring together with the other cables and fasten the cable retainers (1).
  29. Tie the wiring and secure the T-Box harness to the vehicle wiring (2).
  30. Install the lower B pillar trim. Refer to PANEL, B-PILLAR TRIM, LOWER, INSTALLATION .
  31. Install the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION .
  32. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
  33. On completion of installation of the T-Box module, connect the scan tool to the car's EOBD socket, locate the BCM module and check for errors.
