Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster bezel. Refer to BEZEL, INSTRUMENT CLUSTER, REMOVAL .
    GC0165870Courtesy of CHRYSLER GROUP, LLC

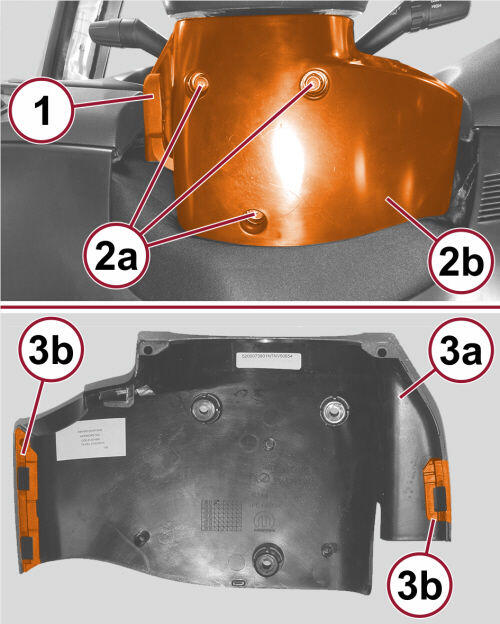

  2. Lower the tilt lever (1).
  3. Remove the screws (2a) securing the bottom cover (2b) to the steering column.
  4. Remove the bottom cover (3a) by disengaging the inside retainers (3b).
    GC0165657Courtesy of CHRYSLER GROUP, LLC

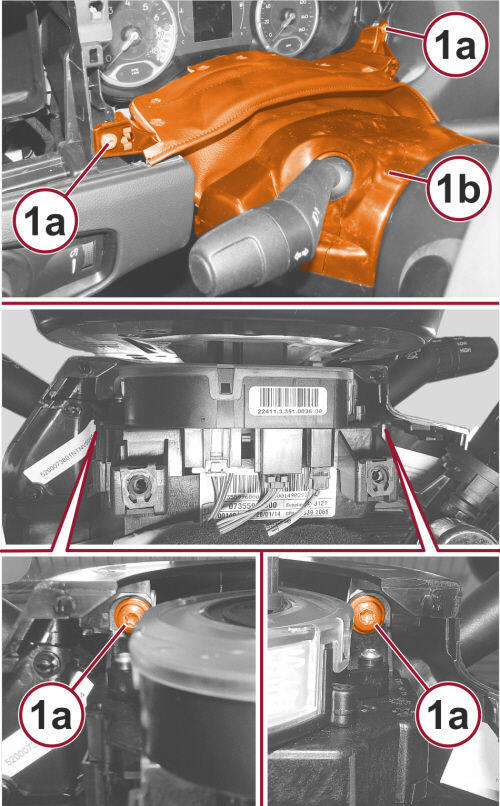

  5. Remove the fasteners (1a) securing the top shroud (1b).
    GC0165750Courtesy of CHRYSLER GROUP, LLC

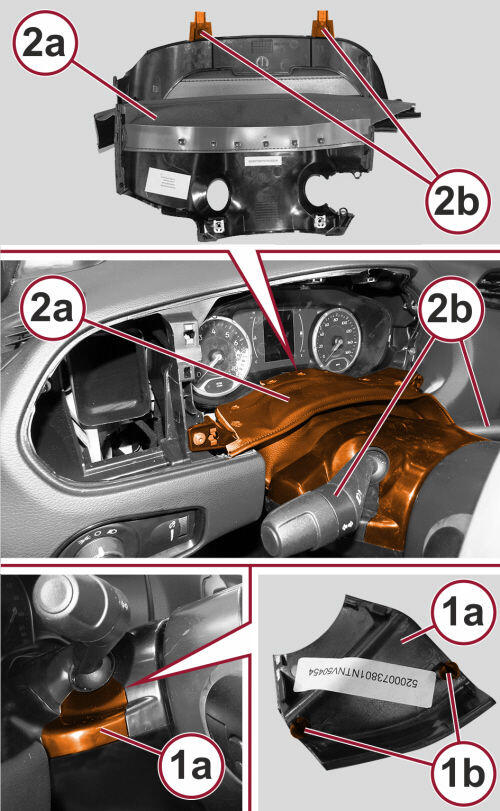

  6. Remove the small closeout flange (1a) by releasing the inside tabs (1b).
  7. Remove the top shroud (2a) by releasing the inside clips (2b).
