Home >> Jeep >> 2019 >> Renegade High Altitude, 4WD >> Repair and Diagnosis >> External Pages >> Different car >> Section 1306 (Power Transfer Unit (Service Information)) >> Switch, Transfer Case >> Removal And Installation >> Removal

Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the floor console. Refer to CONSOLE, FLOOR, REMOVAL AND INSTALLATION .

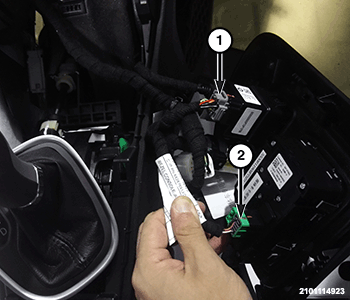

    GC0179189Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the Select Terrain switch wire harness connectors (1, 2) and remove the media hub from the vehicle.

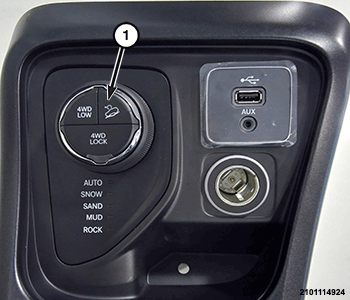

    GC0179052Courtesy of CHRYSLER GROUP, LLC
  4. Using a suitable trim stick, remove the Select Terrain switch (1) from the media hub The switch is held in the media hub by retaining clips.
