Removal And Installation: Installation
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
- If removed, install the PTU actuator and tighten the fasteners securely.

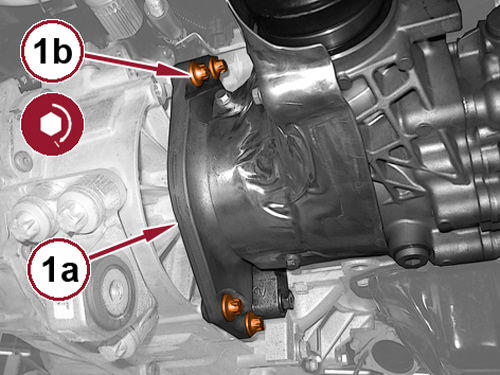

- Install the PTU (1a) with a NEW
O-ring and tighten the fasteners (1b) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

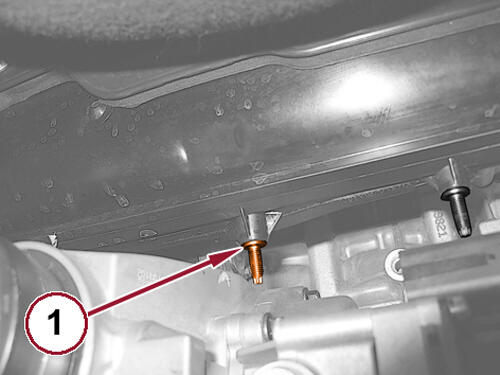

- Install the intake manifold support bracket stud (1) into the intake manifold.

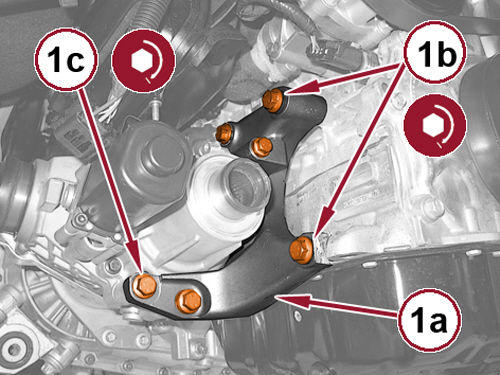

- Install the PTU support bracket (1a) and fasteners (1b and 1c). Tighten the fasteners to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
- Install the intake manifold support bracket and tighten the fasteners securely.
- Connect the wire harness connector to the PTU actuator.
- Install the front suspension crossmember. Refer to CROSSMEMBER, FRONT SUSPENSION, REMOVAL AND INSTALLATION .
- Install the right front halfshaft. Refer to FRONT, REMOVAL AND INSTALLATION and REAR, REMOVAL AND INSTALLATION .
- Verify that the PTU and transmission are filled to the specified fluid level. Refer to CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS .
- Remove the support and lower the vehicle.
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
- When installing a NEW (PTU), connect the diagnostic scan tool, enter "miscellaneous functions" of the DriveTrain Control Module (DTCM) and run the self-learning procedure for the PTU.
