Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the right front tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .

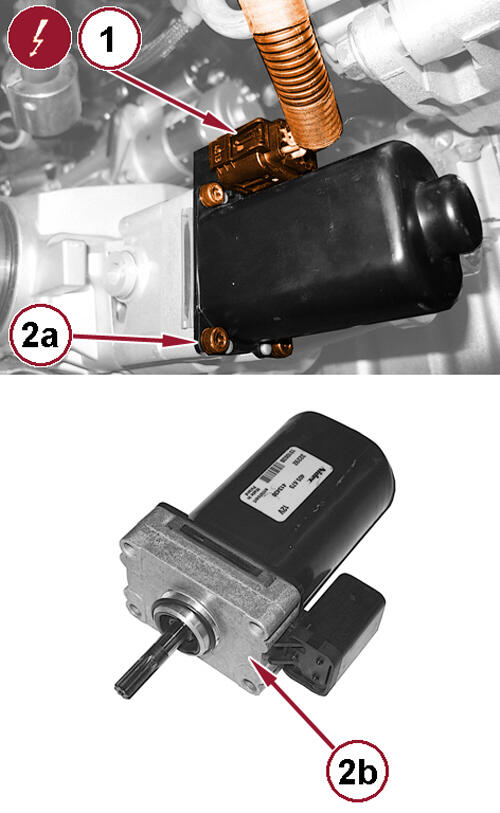

    GC0165820Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the wire harness connector (1) at the actuator.
  4. Remove the actuator mounting fasteners (2a) and separate the actuator (2b) from the Power Transfer Unit (PTU).
