Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering column. Refer to COLUMN, REMOVAL .

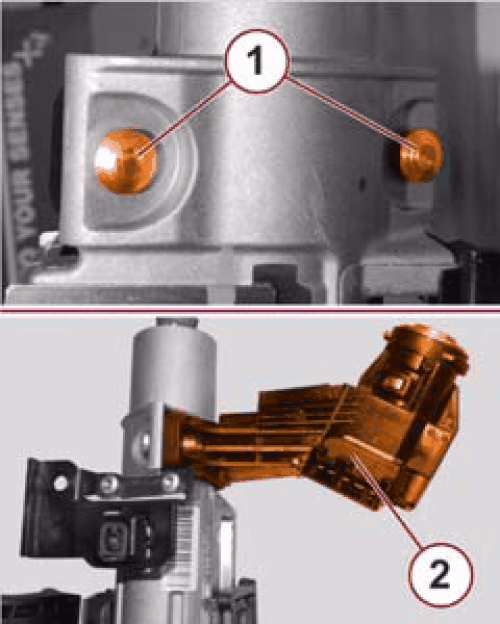

    GC0169418Courtesy of CHRYSLER GROUP, LLC
  2. Using a hacksaw, cut a slot into the head of the shear bolt. Using a slotted screwdriver, remove the shear bolt (1).
  3. Remove the ignition switch with steering lock (2).
