Removal And Installation: Installation
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
- Position the battery tray for installation.

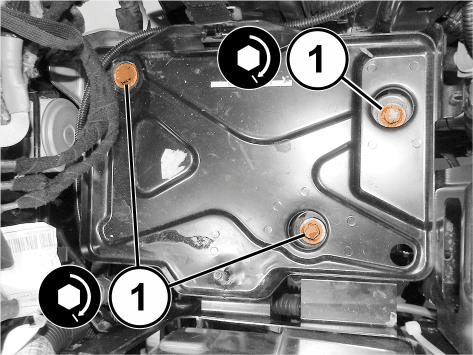

- Install and tighten the battery tray bolts (1) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
- Connect the wire harness to the battery tray and fasten retainer (1).
- Install the ground wire and securely tighten the nut (1).
- Install the battery tray bottom cover (1).
- Install the battery. Refer to BATTERY, REMOVAL AND INSTALLATION .
