Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.

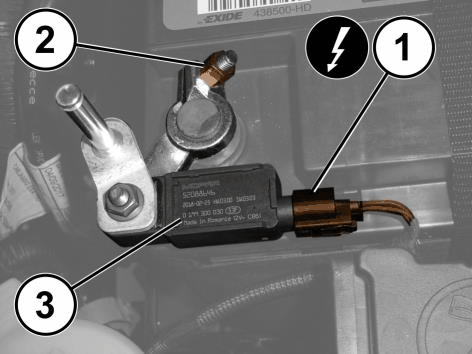

    GC0208208Courtesy of CHRYSLER GROUP, LLC
  2. Disconnect the wiring harness connection (1) from the IBS (3).
  3. Loosen the nut (2) and disconnect the battery negative terminal.
