Negative Cable: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the negative battery cable for installation.

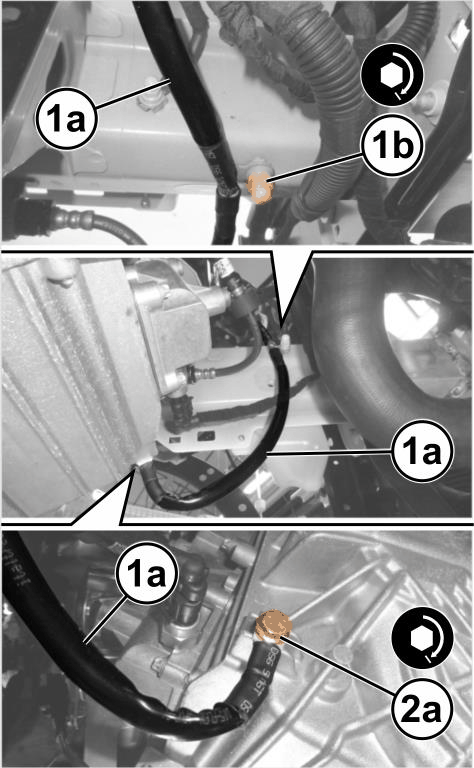

    GC0188730Courtesy of CHRYSLER GROUP, LLC
  2. Connect the negative battery cable retainer to the chassis, then install the nut (1b) and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  3. Connect the terminal of the negative battery cable (1a) to the transmission, then tighten the fastener (2a) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  4. Install the left front wheel splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, INSTALLATION .
  5. Engage the negative battery cable to the retaining clip.
  6. Connect the negative battery cable to the negative terminal post and to engage the retainer.
