1.3L Negative Battery Cable: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
GC0188973Courtesy of CHRYSLER GROUP, LLC
  1. If removed, install the battery thermal protection (3a).
  2. Install the battery (2).
  3. Install the retaining strap and bracket (1b) on the battery, then install and tighten the bracket nut (1a) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
    GC0190221Courtesy of CHRYSLER GROUP, LLC
  4. Connect the battery positive terminal (2b) with the BDU, then securely tighten the nut (2a) of the positive terminal (2b).
  5. Position the plate (1b) and securely tighten the screws (1a).

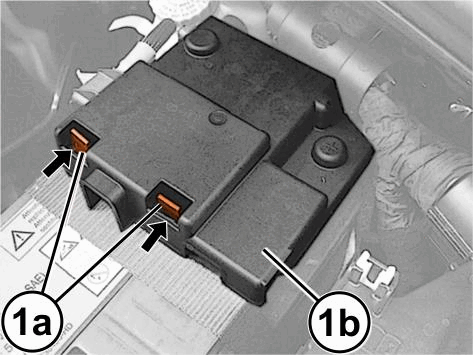

    GC0190252Courtesy of CHRYSLER GROUP, LLC
  6. Position the BDU cover (1b) on the BDU, then engage the retainers (1a).
    GC0189623Courtesy of CHRYSLER GROUP, LLC
  7. Connect the negative battery cable terminal with the IBS (2b) to the negative post of the battery and securely tighten the nut (2a).
  8. Install and secure the negative battery cable (1b) to the negative terminal pole (1c). Make certain the retainer (1a) is fully engaged.
