Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION, 1.3L or COVER, ENGINE, REMOVAL AND INSTALLATION, 2.4L .
  2. Remove the battery tray. Refer to TRAY, BATTERY, REMOVAL AND INSTALLATION .
  3. Place the transmission in Neutral and raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  4. Remove the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
  5. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL AND INSTALLATION .

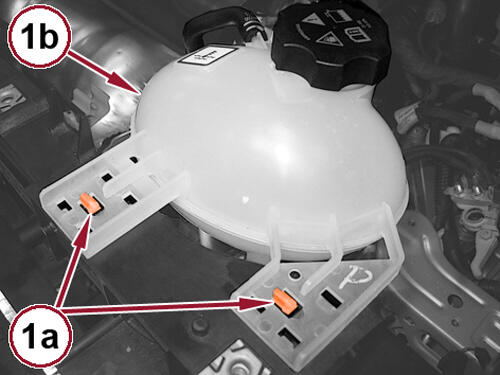

    GC0164499Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    It is not necessary to disconnect the coolant hoses from the coolant reservoir.

  6. Press the release tabs (1a) to detach the coolant reservoir (1b) and position the reservoir aside.

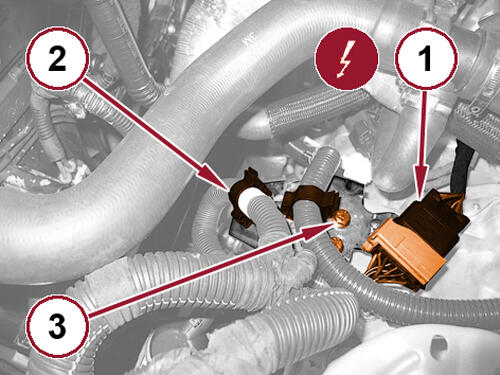

    GC0166037Courtesy of CHRYSLER GROUP, LLC
  7. Disconnect the wire harness connector (1).
  8. Release the wire harness from the routing clips (2).
  9. Remove the wire harness retainer fasteners (3) and remove the bracket.

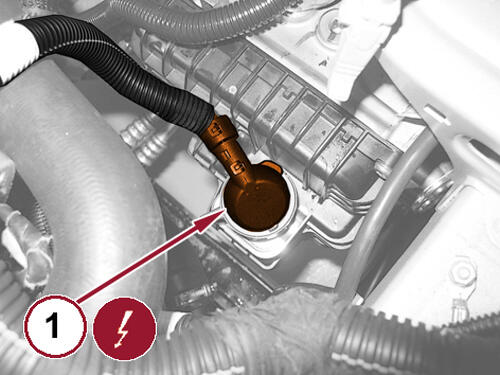

    GC0163676Courtesy of CHRYSLER GROUP, LLC
  10. Rotate the lock lever (1) counterclockwise and disconnect the wire harness connector from the socket on the transmission oil pan.

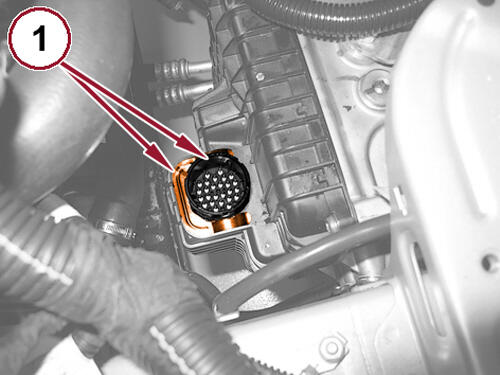

    GC0163521Courtesy of CHRYSLER GROUP, LLC
  11. Remove the transmission wire harness retaining clip and push the connector into the valve body cover (1).

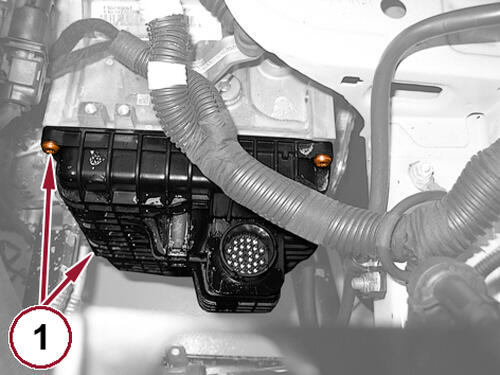

    GC0163429Courtesy of CHRYSLER GROUP, LLC
  12. Remove the accessible upper fasteners (1) from the valve body cover.

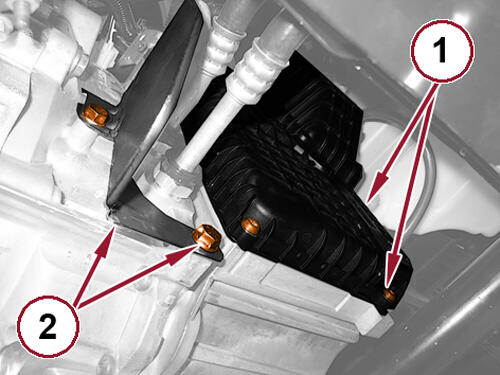

    GC0164959Courtesy of CHRYSLER GROUP, LLC
  13. Remove the fasteners (2) and the transmission oil cooler line shield.
  14. Remove the remaining lower valve body cover fasteners (1).

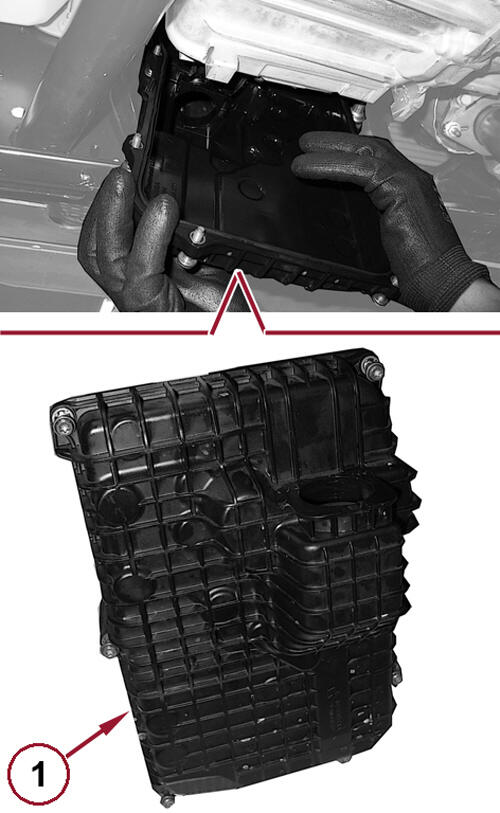

    GC0163992Courtesy of CHRYSLER GROUP, LLC
  15. Remove the valve body cover (1).
    GC0162225Courtesy of CHRYSLER GROUP, LLC
  16. Remove the valve body to case fasteners (1).

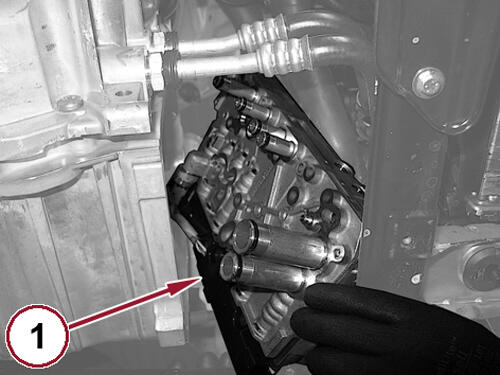

    GC0163939Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    The fluid transfer tubes may come out with the valve body.

  17. Using a suitable prying tool, separate the valve body (1) from the transmission.
    GC0166057Courtesy of CHRYSLER GROUP, LLC
  18. Remove the Transmission Range Sensor (TRS) mounting fastener (1).
    GC0164789Courtesy of CHRYSLER GROUP, LLC
  19. Remove the transmission speed sensor fastener and pull the speed sensor from the case (1).

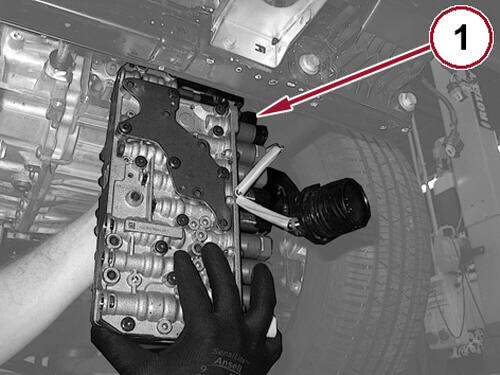

    GC0165446Courtesy of CHRYSLER GROUP, LLC
  20. Remove the valve body with the wire harness (1) from the vehicle.
    NOTE:

    If the valve body is to be reused without disassembling it, store the valve body in a clean area until it is ready to be installed.

    GC0165022Courtesy of CHRYSLER GROUP, LLC
  21. If necessary, disconnect the wiring harness from the transmission fluid pressure transducer (1).
  22. To remove the internal transmission harness, remove the fasteners from the solenoid connectors and lift the harness (2) from the valve body.
