Removal And Installation: Installation
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
- Remove and discard the old O-ring from the fluid pressure sensor if the old fluid pressure sensor is reused.

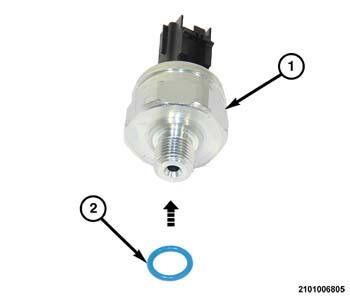

- Install a NEW
O-ring (2) on the fluid pressure sensor (1).
- Thread the fluid pressure sensor (1) into the valve body.
- Using a suitable wrench, tighten the fluid pressure sensor (1).
- Connect the fluid pressure sensor wire harness connector (1) and make sure the wire harness connector lock (2), locks.
- Install the valve body. Refer to VALVE BODY, REMOVAL AND INSTALLATION .
