Fwd Both Sides - 4WD / AWD Left Side

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Clean the seal bore in the transmission housing with a clean lint-free cloth.

  1. Apply assembly lube on the lip of the NEW  seal to avoid damage after installation.
    GC0159965Courtesy of CHRYSLER GROUP, LLC
  2. Using tool (special tool #10506, Installer, Oil Seal) 10506 (2) and (special tool #C-4171, Driver Handle, Universal) (1) with the seal (3) positioned on the installer, insert the seal in the transmission bore around the output shaft.
    GC0159353Courtesy of CHRYSLER GROUP, LLC

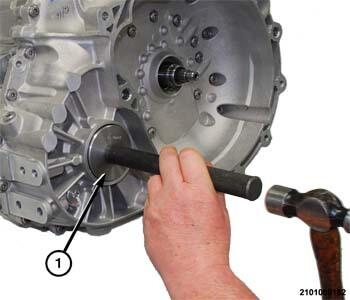

  3. Using a suitable hammer, drive the seal installer (1) until the seal is seated into the transmission.
  4. Install the Left Hand (LH) halfshaft. Refer to FRONT, REMOVAL AND INSTALLATION and REAR, REMOVAL AND INSTALLATION .
  5. Verify that the transmission fluid is at the proper level. Refer to FLUID AND FILTER, STANDARD PROCEDURE .
