AWD And 4WD Right Side: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

NOTE:

The 948TE/9HP48 automatic transmission configured for All Wheel Drive (AWD) utilizes an adapter sleeve (1) to couple the Power Transfer Unit (PTU) to the differential. Lip seals are used to seal the inner and outer surfaces of the adapter sleeve.

Remove the PTU from the vehicle. Refer to REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

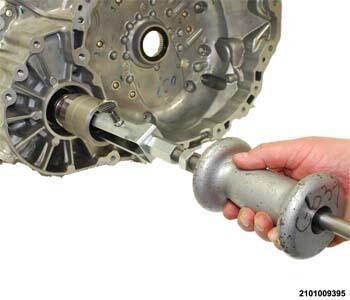

Using tool (special tool #7794-A, Remover, Seal) and (special tool #C-637, Slide Hammer, Universal), remove the adapter sleeve from the transmission.

Courtesy of CHRYSLER GROUP, LLC

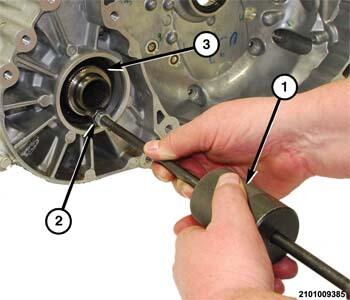

Using tool (special tool #9667, Remover, Seal) (2) and (special tool #C-3752, Slide Hammers) (1), remove the seal (3) from the transmission.

Courtesy of CHRYSLER GROUP, LLC

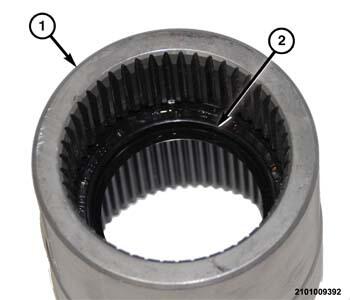

Position the adapter sleeve (1) on the work surface with the seal (2) tension spring side down.

Courtesy of CHRYSLER GROUP, LLC

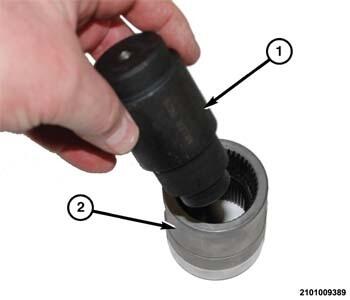

Insert tool (special tool #9676, Adapter Plug) (1) into PTU side of the adapter sleeve (2).

Courtesy of CHRYSLER GROUP, LLC

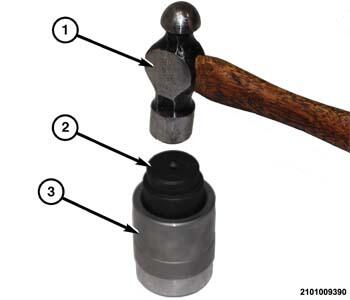

Using a suitable hammer (1) and the adapter plug (2), drive the seal from the inside of the adapter sleeve (3).
