AWD And 4WD Right Side: Installation
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Clean the adapter sleeve with suitable solvent and blow it dry with regulated 344 kPa (50 psi) shop air.
- Apply assembly lube on the inner seal lip to avoid damaging the seal during installation.
- Place the adapter sleeve on a suitable work surface with the transmission side up.
- Insert the NEW

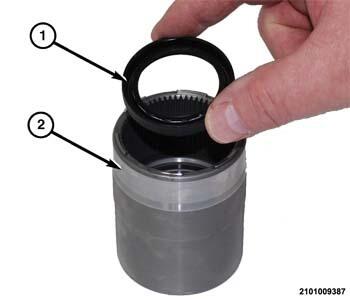

lip seal (1) into the adapter sleeve (2), (AWD Shown) with the tension spring up.

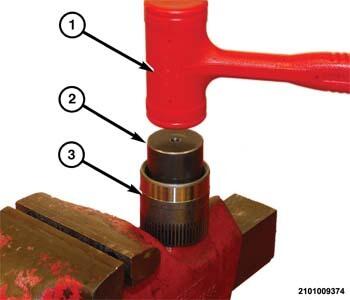

- Using tool (special tool #9611, Plug, Differential End) (2) and a hammer (1), install the seal in the adapter sleeve (3).
- Apply assembly lube on the outer seal (1) lip to avoid damaging the seal during installation.

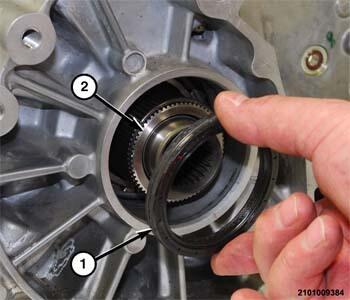

- Insert the NEW lip seal (1) into the transmission (2).

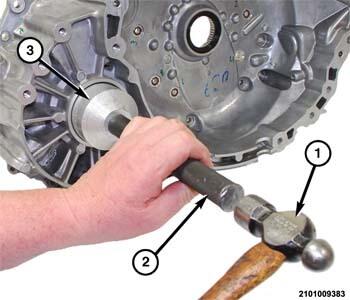

- Using tool (special tool #C-3972-A, Installer, Seal) (3), (special tool #C-4171, Driver Handle, Universal) (2), and a hammer (1), Install the outer lip seal in the transmission.

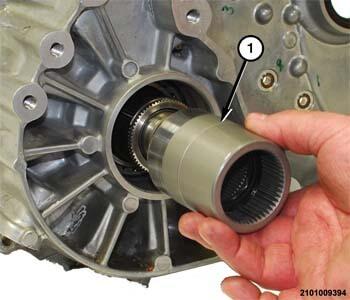

- Install the adapter sleeve (1) in the transmission.
- Install the PTU into the vehicle. Refer to REMOVAL AND INSTALLATION .
- Verify that the transmission fluid level is at the proper level. Refer to FLUID AND FILTER, STANDARD PROCEDURE .
