Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the parking brake.
  2. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  3. Remove the floor console. Refer to CONSOLE, FLOOR, REMOVAL AND INSTALLATION .
    GC0189595Courtesy of CHRYSLER GROUP, LLC

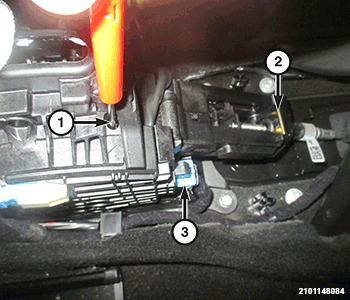

  4. Remove the shifter cable adjustment clip (1) from the shift cable.
    GC0189097Courtesy of CHRYSLER GROUP, LLC

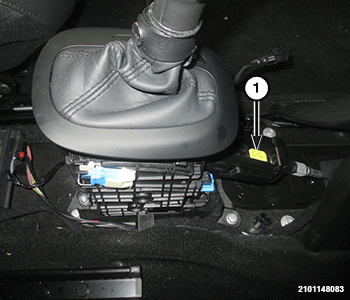

  5. Remove the shifter cable retention clip (2) from the gear shifter.
    GC0176794Courtesy of CHRYSLER GROUP, LLC

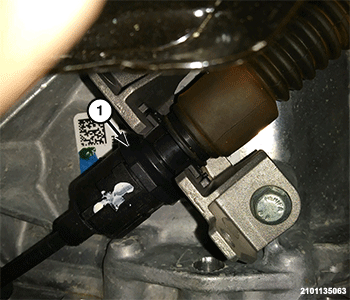

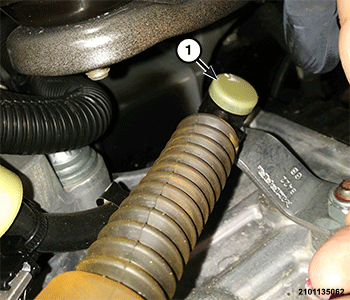

  6. Detach the shifter cable end (1) from the transmission manual lever.
    GC0178791Courtesy of CHRYSLER GROUP, LLC

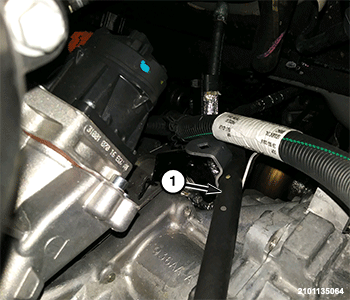

  7. Detach the shifter cable (1) from the transmission shifter cable bracket.
    GC0179244Courtesy of CHRYSLER GROUP, LLC
  8. Detach the shifter cable (1) from the clip.
  9. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  10. Remove the rear exhaust muffler. Refer to MUFFLER, EXHAUST, REMOVAL AND INSTALLATION, 1.3L or MUFFLER, EXHAUST, REMOVAL AND INSTALLATION, 2.4L .
    GC0189430Courtesy of CHRYSLER GROUP, LLC

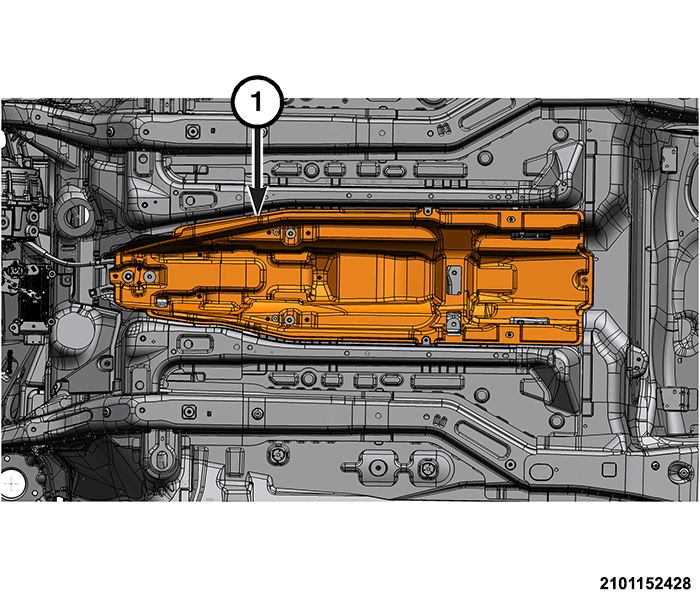

  11. Remove the exhaust heat shield (1).
  12. Remove the nuts for the shifter cable grommet and plate assembly.
  13. Pull the shifter cable and plate assembly through the opening in the floor pan.
  14. Remove the shifter cable from the vehicle.
