Transfer Gear Outer Bearing Race: Installation
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
Clean the bearing bore with a lint free cloth and inspect for damage to the bellhousing casting. If the bellhousing is damaged the transmission will require replacement.
- Place the NEW
transfer gear outer bearing race in position in the bellhousing bore.

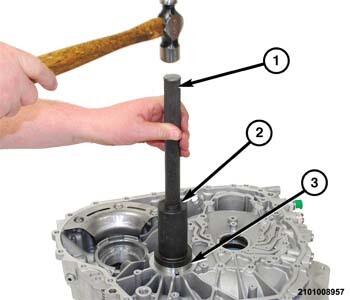

- Using and suitable hammer and tool (special tool #10036, Installer, Bearing Cup) (1) with (special tool #C-4171, Driver Handle, Universal) (2), drive the transfer gear outer bearing race (3) into the bellhousing bore until it seats down to the bottom stop.
- Install the bellhousing. Refer to BELLHOUSING, REMOVAL AND INSTALLATION .
- Install the transmission in the vehicle. Refer to REMOVAL AND INSTALLATION .
