Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Never grasp half shaft assembly by the boots. This may cause the boot to pucker or crease and reduce the service life of the boot.

Avoid over angulating or stroking the C/V joints when handling the half shaft.

Half shafts exposed to battery acid, transmission fluid, brake fluid, differential fluid or gasoline may cause the boots to deteriorate. Failure to follow these instructions will result in damage.

NOTE:

Use care when installing halfshaft to axle assembly. The halfshaft installation angle should be minimized to avoid damage to the seal upon installation.

Courtesy of CHRYSLER GROUP, LLC

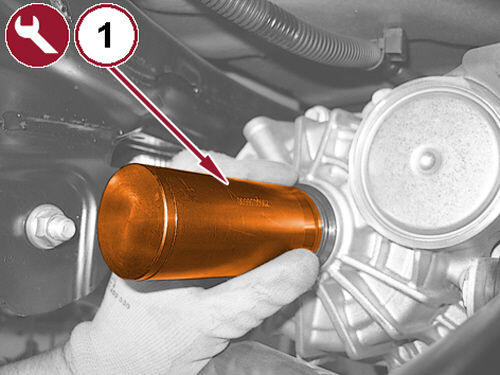

If removed, install a new oil seal. EMEA markets use special tool 2000036600 (1). North America Market use (special tool #6052A, Installer, Bearing/Seal).

Courtesy of CHRYSLER GROUP, LLC

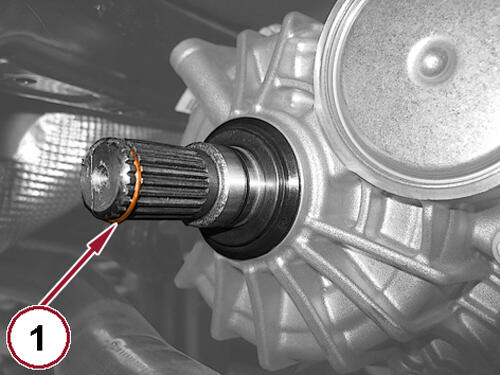

Install a NEW snap ring (1) on the stub shaft.
Install the halfshaft until the circlip engages in the RDU.
Install the rear knuckles. Refer to KNUCKLE, REAR, REMOVAL AND INSTALLATION .
Check wheel alignment. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
