Removal And Installation: Removal
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Remove the tire and wheel assembly. Refer to REMOVAL .
- Remove the front wiper cowl. Refer to COVER, COWL PANEL, REMOVAL
.

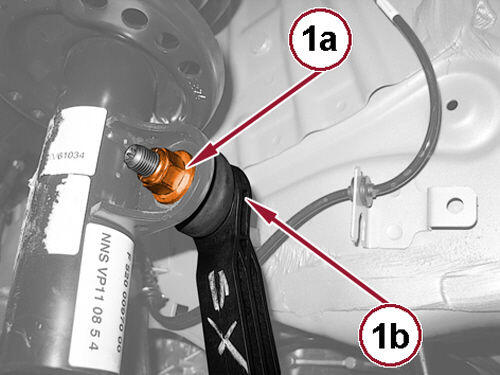

- Remove the stabilizer bar link to strut nut (1a) and the stabilizer bar link from the strut.

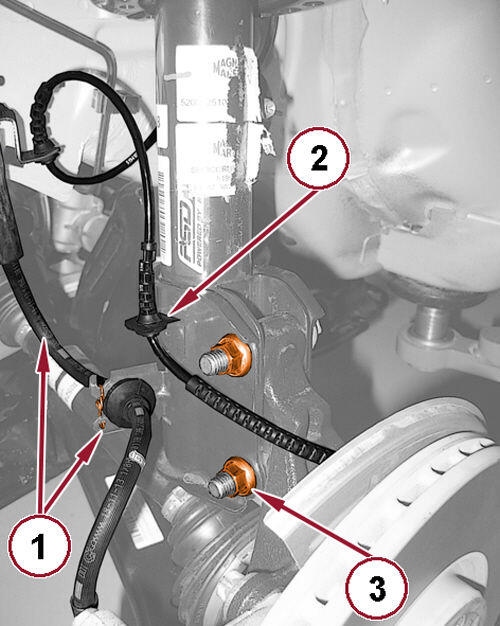

- Remove the retaining clip (1) and remove the brake hose (1) from the strut.
- Remove the wheel speed sensor wire harness (2) from the strut.
- Remove the strut to knuckle nuts (3) and bolts.
- Lower the vehicle.

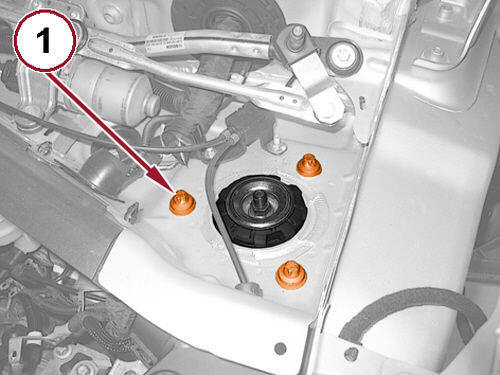

- Remove the strut to body bolts (1).

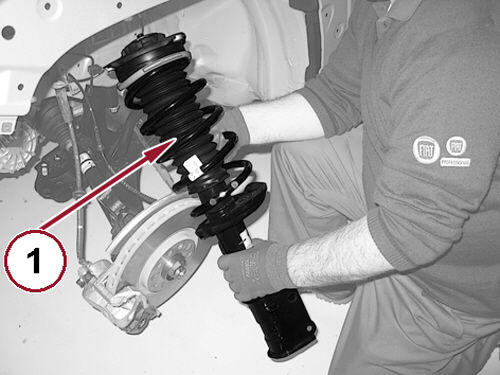

- Remove the strut (1) from the vehicle.

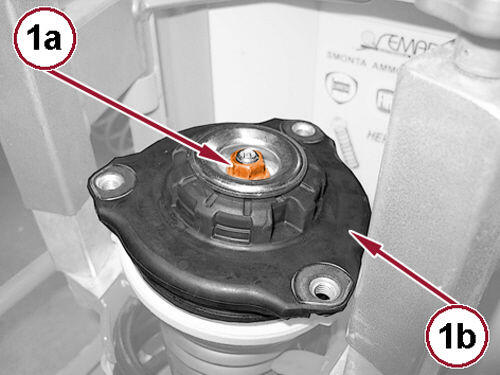

- Position the strut assembly (1b) in the strut compressor and compress the spring.
- Remove the strut rod to strut mount nut (1a) by using (special tool #2027800020, Kit, Remover - Installer Shock / Strut).

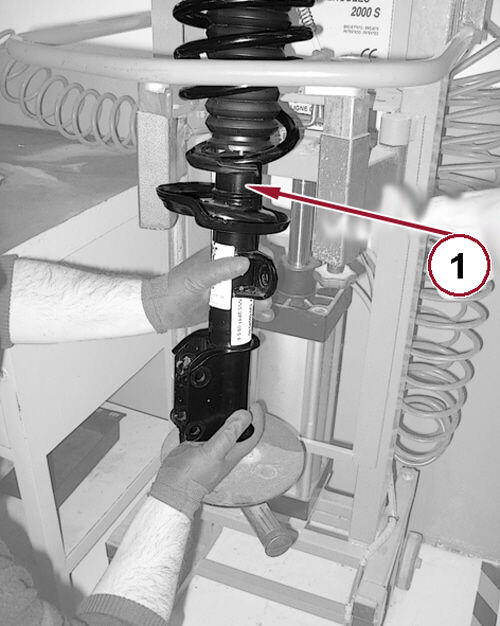

- Remove the strut (1) from the spring assembly.

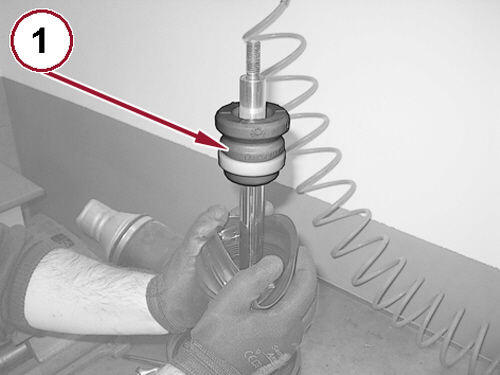

- Lower the boot and remove the jounce bumper (1).

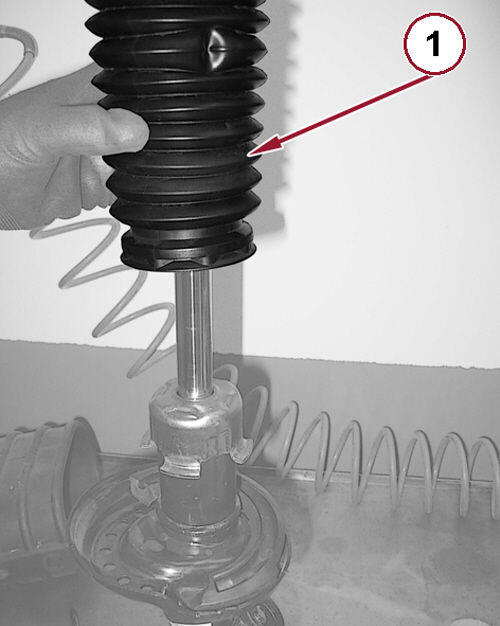

- Remove the boot (1) from the strut.

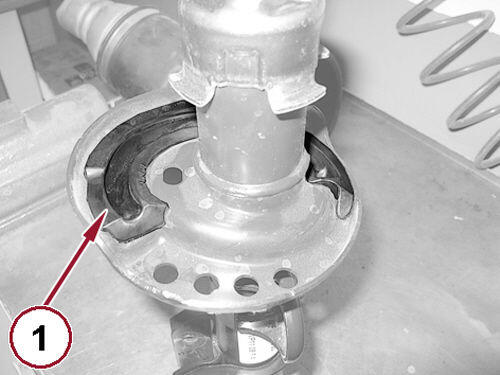

- Remove the lower spring isolator (1).

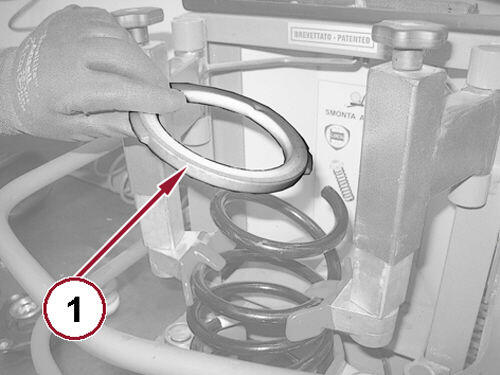

- Remove the upper spring isolator (1).

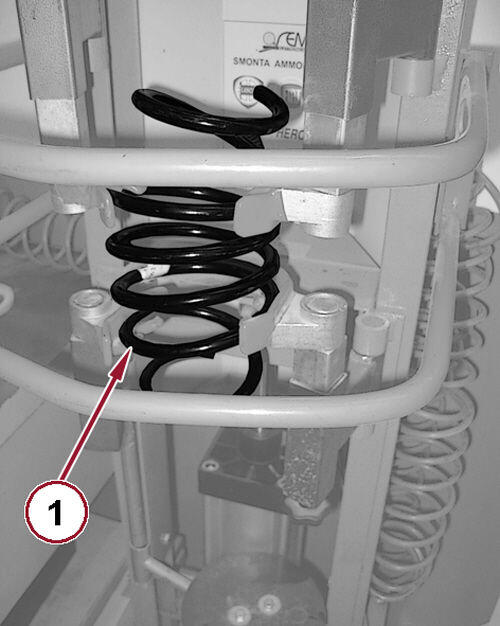

- If necessary, decompress the spring and remove the spring (1) from the strut compressor.
