Removal And Installation: AWD: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

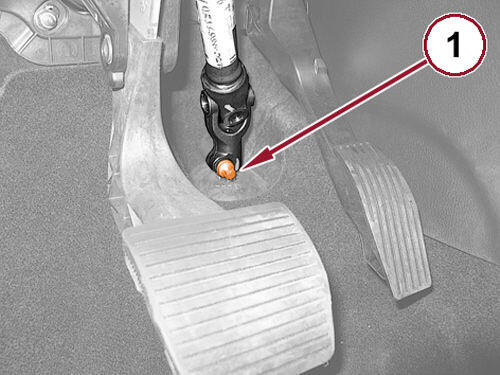

GC0163431Courtesy of CHRYSLER GROUP, LLC
  1. Remove the bolt (1) securing the steering column to the steering gear and disengage the shaft.
  2. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  3. Remove the right front tire and wheel assembly. Refer to REMOVAL .
  4. Remove the right front splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL .
  5. Remove the belly pan. Refer to BELLY PAN, REMOVAL .
  6. Remove the right halfshaft. Refer to FRONT, REMOVAL AND INSTALLATION or REAR, REMOVAL AND INSTALLATION .
    GC0163764Courtesy of CHRYSLER GROUP, LLC

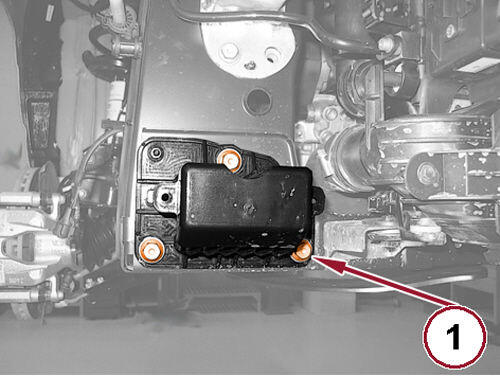

  7. Remove the bolts (1) securing the right lower load beam extension to the front end.

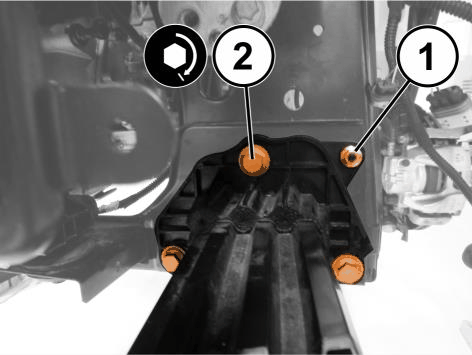

    GC0189588Courtesy of CHRYSLER GROUP, LLC
  8. On both sides, remove the nut (1) and the bolts (2) securing the pedestrian impact crossmember and remove the pedestrian impact crossmember.
    GC0163531Courtesy of CHRYSLER GROUP, LLC

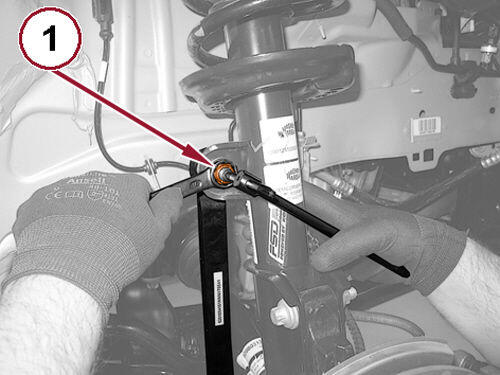

  9. Holding the stem of the link, remove the nut (1) and the right stabilizer bar link from the shock.
  10. On the left side, proceed similarly to disconnect the stabilizer bar link.
    GC0163955Courtesy of CHRYSLER GROUP, LLC

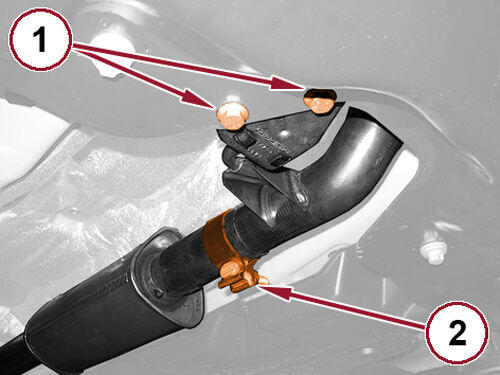

  11. Remove the rear exhaust pipe bracket bolts (1).
  12. Loosen the clamp (2) and the muffler pipe.
    GC0163806Courtesy of CHRYSLER GROUP, LLC

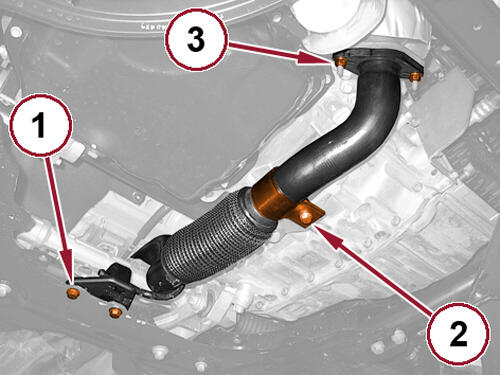

  13. Remove the front exhaust pipe support bracket bolts (1).
  14. Unscrew the exhaust pipe support bracket bolt (2).
  15. Remove and DISCARD  the nuts (3) and disengage the exhaust pipe from the catalytic converter.
  16. Remove the gasket.
    GC0164564Courtesy of CHRYSLER GROUP, LLC

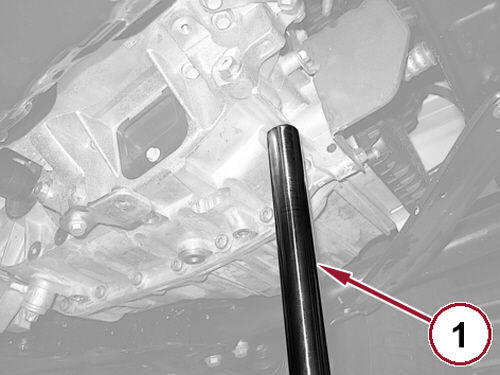

  17. Place a suitable hydraulic lift (1) under the transmission as shown in the figure.
    GC0163460Courtesy of CHRYSLER GROUP, LLC

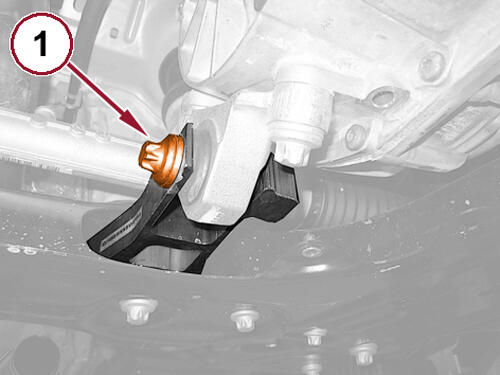

  18. Remove the rear engine mount isolator to bracket bolt (1).
  19. Place a suitable hydraulic lift under the front suspension crossmember.
  20. Remove the suspension crossmember rear bolts.
    GC0162944Courtesy of CHRYSLER GROUP, LLC

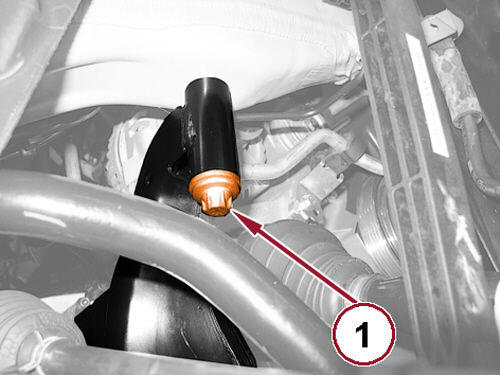

  21. Remove and DISCARD  the left and right side front suspension crossmember to body bolts (1).
    GC0165442Courtesy of CHRYSLER GROUP, LLC

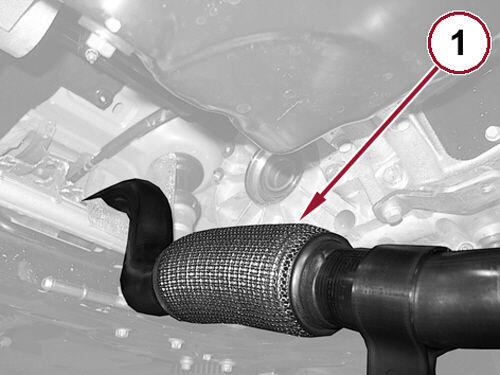

  22. Using the hydraulic lift, lower the front suspension crossmember and remove the exhaust pipe (1) with front flexible pipe.
