Rear Muffler: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble the front muffler and the rear muffler.
  2. Install the rear exhaust muffler from the rear forward and support with a suitable hydraulic lift under the muffler.
  3. Position the exhaust pipe clamp and tighten the nut to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  4. Install exhaust isolators and securely tighten the bolts.
  5. Install the center rear fascia bolts and tighten securely.

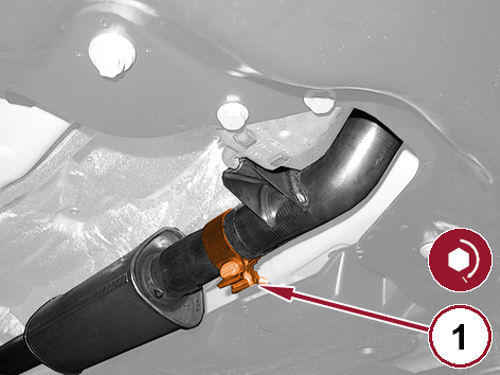

    GC0164950Courtesy of CHRYSLER GROUP, LLC
  6. Position the exhaust pipe clamp (1) and tighten the nut to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  7. Remove the support and lower the vehicle.
