Catalytic Converter: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
  2. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
  3. Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
  4. Remove the intake air tube. Refer to TUBE, INTAKE AIR, REMOVAL AND INSTALLATION .
  5. Remove the turbocharger heat shield. Refer to TURBOCHARGER, REMOVAL AND INSTALLATION .
  6. Remove the belly pan. Refer to BELLY PAN, REMOVAL .
  7. Remove the support and lower the vehicle.
    GC0190039Courtesy of CHRYSLER GROUP, LLC

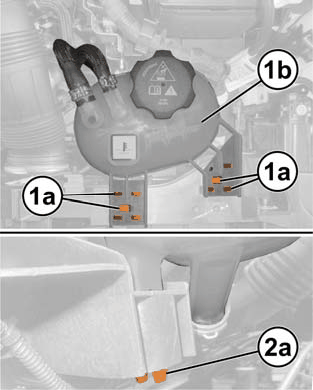

  8. Disengage the upper retaining clips (1a) of the pressurized coolant bottle (1b).
  9. Disengage the lower retaining clip (2a) and reposition the pressurized coolant bottle (1b).
    GC0189793Courtesy of CHRYSLER GROUP, LLC

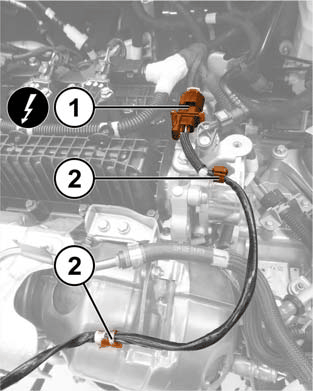

  10. Unlock and disconnect the upstream oxygen sensor wire harness connector (1).
  11. Open the clips (2) and release the wiring.
    GC0188991Courtesy of CHRYSLER GROUP, LLC

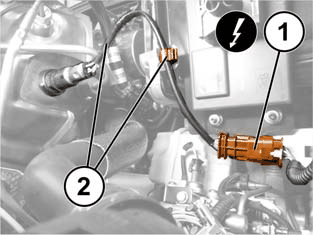

  12. Unlock and disconnect the downstream oxygen sensor wire harness connector (1).
  13. Open the clip (2) and release the wiring.
    GC0188829Courtesy of CHRYSLER GROUP, LLC

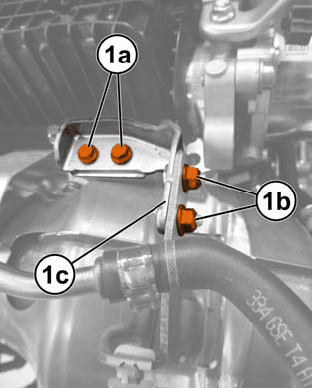

  14. Remove the bolts (1a) and nuts (1b) and remove the upper catalytic converter mounting bracket (1c).
    GC0189285Courtesy of CHRYSLER GROUP, LLC

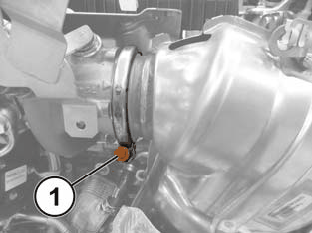

  15. Loosen the collar bolt (1) securing the catalytic converter to the turbocharger.
    GC0189859Courtesy of CHRYSLER GROUP, LLC

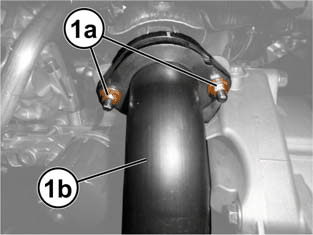

  16. Remove the nuts (1a) and remove the exhaust pipe (1b) from the catalytic converter.
  17. Remove the gasket.
    GC0189951Courtesy of CHRYSLER GROUP, LLC

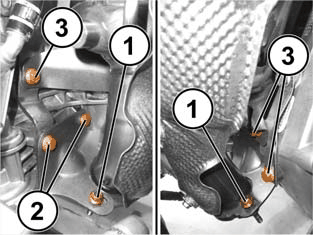

  18. Remove the nuts (1) from the exhaust pipe flange.
  19. Remove the bolts (2) securing the catalytic converter support bracket to the crankcase.
  20. Remove the bolts (3) from the side mounting brackets.
    GC0188710Courtesy of CHRYSLER GROUP, LLC

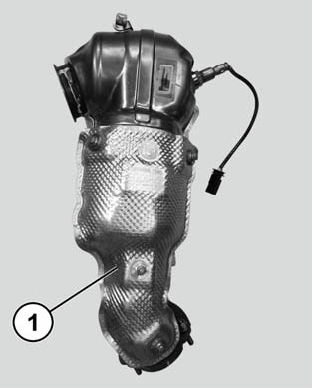

  21. Remove the catalytic converter assembly (1).
    GC0189042Courtesy of CHRYSLER GROUP, LLC

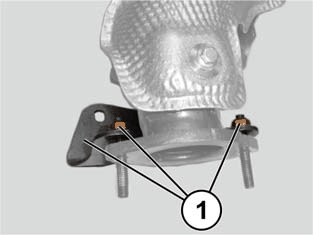

  22. If required, remove the nuts and the lower mounting bracket (1) from the catalytic converter.
    GC0189363Courtesy of CHRYSLER GROUP, LLC

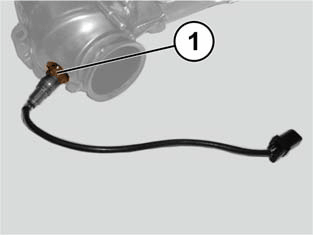

  23. If required, remove the upstream oxygen sensor (1) from the catalytic converter.
    GC0189317Courtesy of CHRYSLER GROUP, LLC

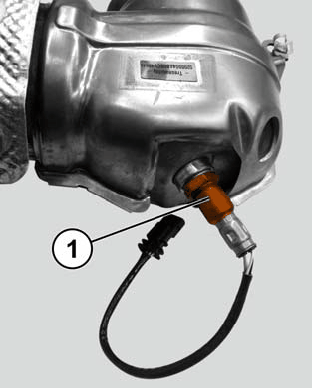

  24. If required, remove the downstream oxygen sensor (1) from the catalytic converter.
    GC0189343Courtesy of CHRYSLER GROUP, LLC

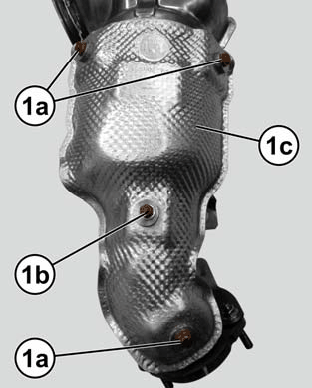

  25. If required, remove the bolts (1a), nut (1b) and the heat shield (1c) from the catalytic converter.
    GC0189938Courtesy of CHRYSLER GROUP, LLC

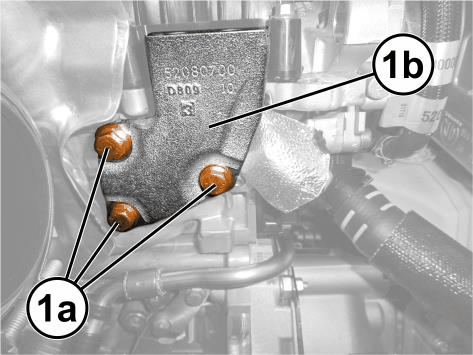

  26. If required, remove the bolts (1a) and the catalytic converter support bracket (1b).
    GC0190040Courtesy of CHRYSLER GROUP, LLC

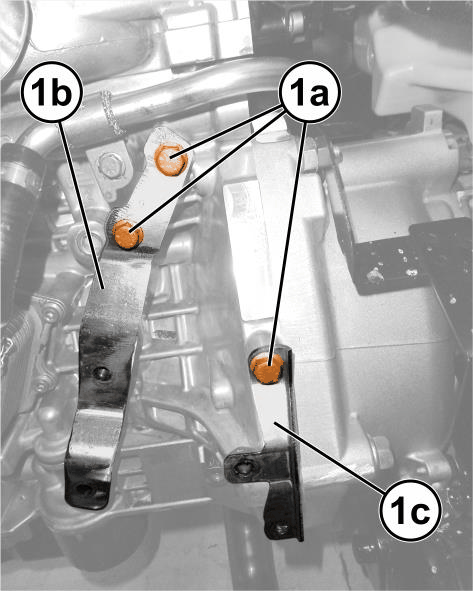

  27. If required, remove the bolts (1a) and the catalytic converter side support brackets (1b) and (1c).
