Disassembly And Assembly: Disassembly

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

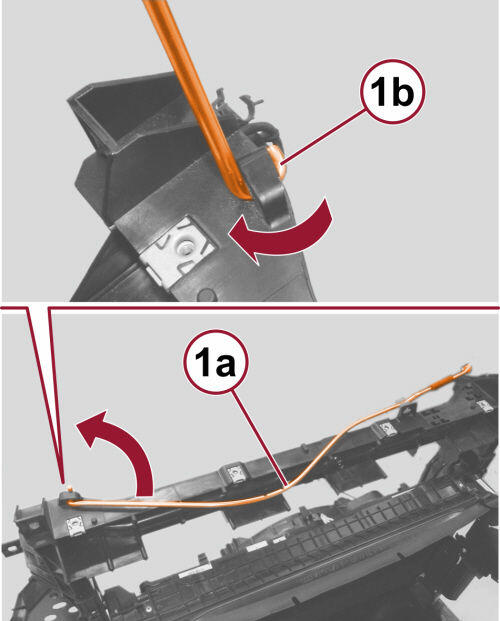

GC0164861Courtesy of CHRYSLER GROUP, LLC
  1. Remove the headlamp mounting crossmember. Refer to CROSSMEMBER, HEADLAMP MOUNTING, REMOVAL AND INSTALLATION .
  2. Raise the rod (1a) supporting the engine compartment lid open, turn the end (1b) and remove it from its seat releasing it on the front end.

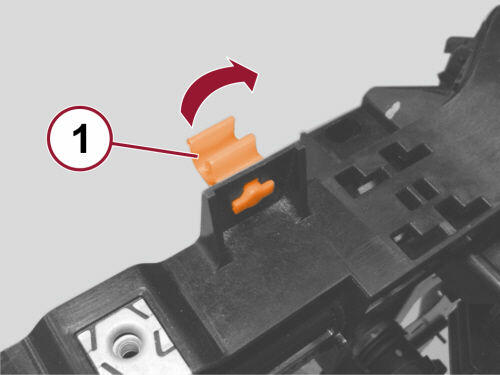

    GC0163630Courtesy of CHRYSLER GROUP, LLC
  3. Rotate and remove the latch rod support (1).

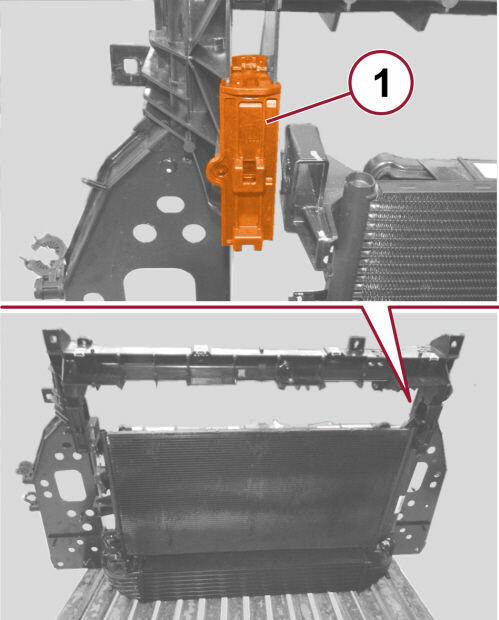

    GC0163264Courtesy of CHRYSLER GROUP, LLC
  4. Release the upper radiator retainer covers and remove the covers (1).

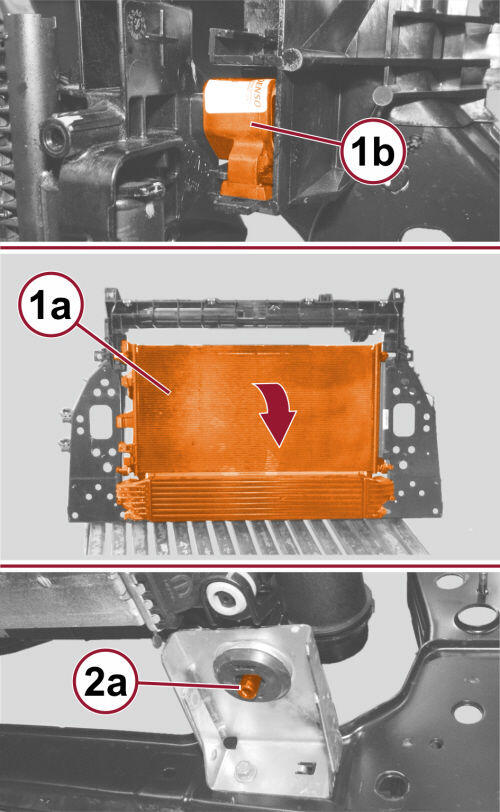

    GC0163841Courtesy of CHRYSLER GROUP, LLC
  5. Rotate the radiator (1a) down and remove the upper retainers (1b).
  6. Lift the radiator assembly up and off of the lower pins (2a) and remove.

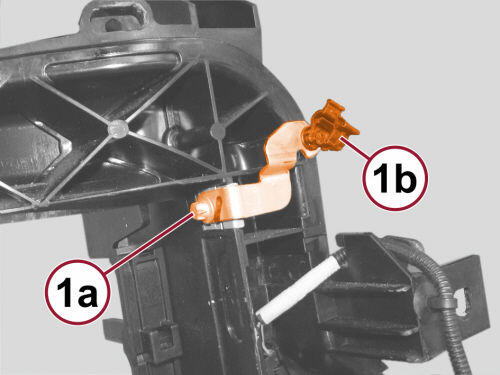

    GC0165181Courtesy of CHRYSLER GROUP, LLC
  7. Remove the screw (1a) and remove the bracket (1b) of the valve support charging of the air conditioning.

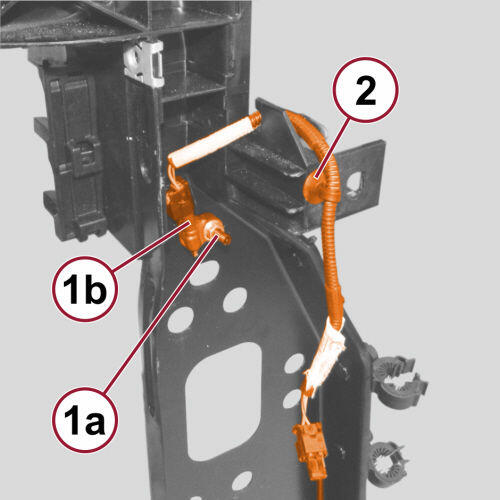

    GC0166021Courtesy of CHRYSLER GROUP, LLC
  8. Remove the nuts (1a) and remove the front Air Bag sensors (1b).
  9. On the right side, release the clip (2) retaining the wiring.

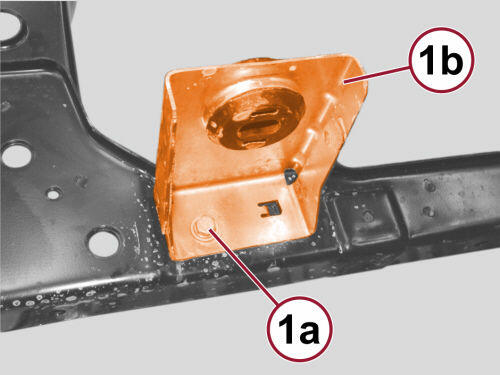

    GC0163481Courtesy of CHRYSLER GROUP, LLC
  10. Remove the screws (1a), release the retainers (1b) and remove the radiator mounting brackets.

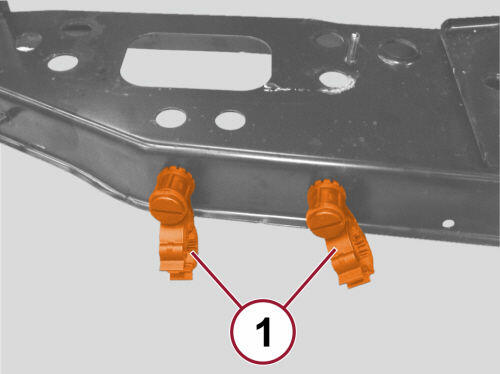

    GC0163873Courtesy of CHRYSLER GROUP, LLC
  11. Release and remove retainers (1).
