Striker, Door Latch: Adjustments
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

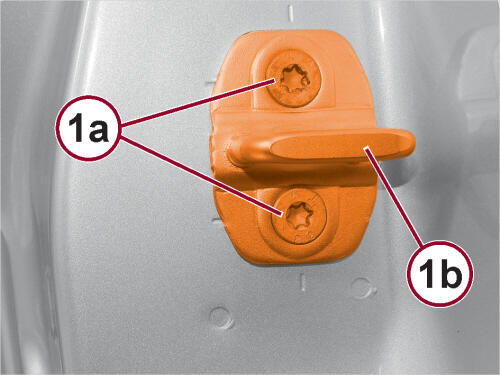

- Loosen the bolts (1a) of the striker (1b).

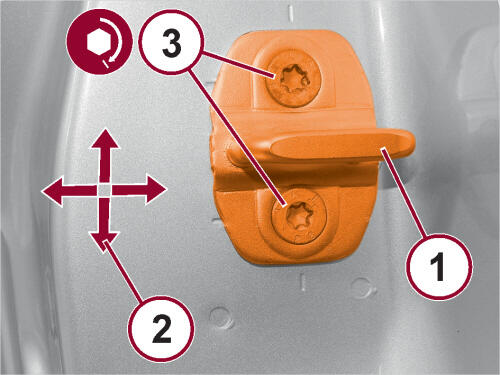

- Move the striker (1) into the correct position.
- The arrows (2) indicated the allowable movements.
- Tighten the bolts (3) to the proper specification. Refer to TORQUE SPECIFICATIONS .
- Check the operation of the door and repeat adjustments as necessary.
