Symbols Removal And Installation
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The following is the graphic index chart and description of the symbols that appear in the repair procedures.

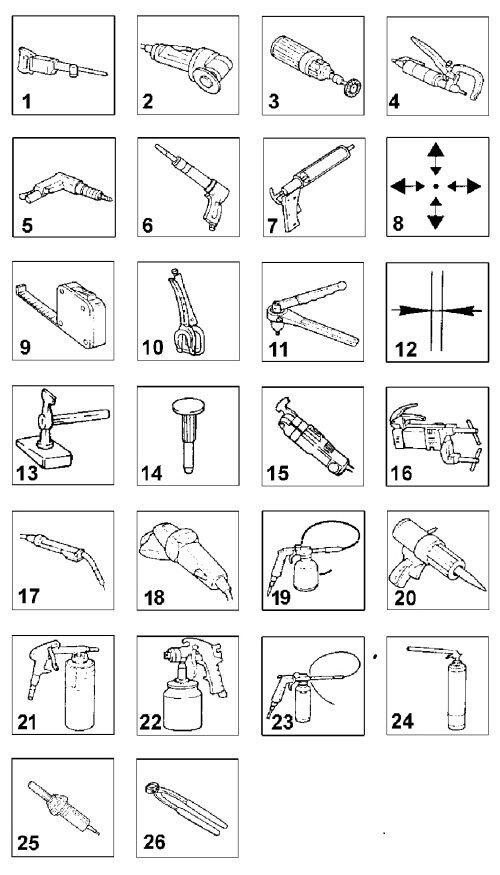

SYMBOLS
| 1- Cutting with reciprocating saw | 14- Removing spot welds with hammer and chisel |
| 2- Cutting with circular blade saw | 15- Removing treatment with power knife |
| 3- Cleaning with rotary brush | 16- Spot welding |
| 4- Removing spot welds with spot weld removal tool | 17- MIG welding |
| 5- Removing spot welds with drill. Drilling for MIG welding | 18- Grinding |
| 6- Removing body panel with chisel. Drilling for MIG welding | 19- Applying rust-proofing protection |
| 7- Applying high thickness electro-weldable/weld through protections | 20- Application of sealants |
| 8- Centering components | 21- Application of underbody protection |
| 9- Measurement | 22- Application of paint |
| 10- Fastening components | 23- Application of protective waxes |
| 11- Fastening threaded rivets | 24- Application of foam products |
| 12- Checking alignment gaps | 25- Heating with hot air |
| 13- Straightening edges with hammer and dolly block | 26- Removing metal off-cuts |
MACHINING SYMBOLS

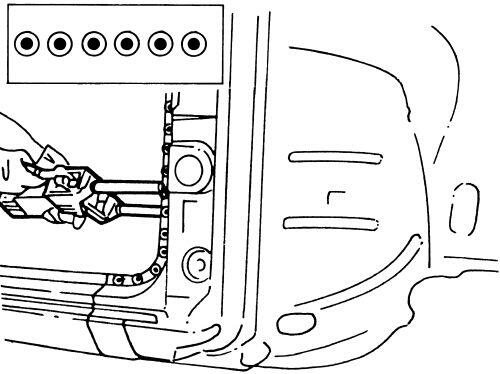

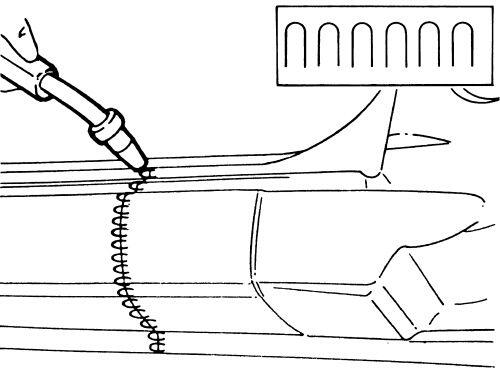

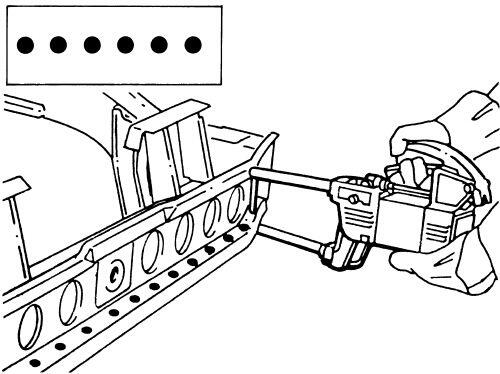

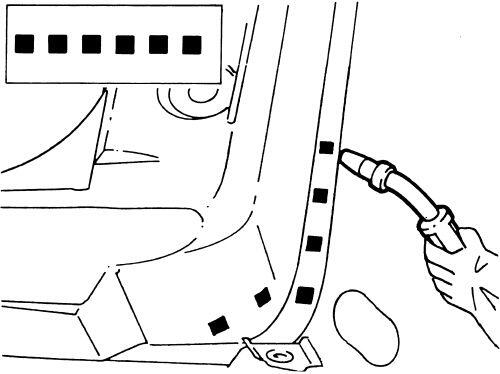

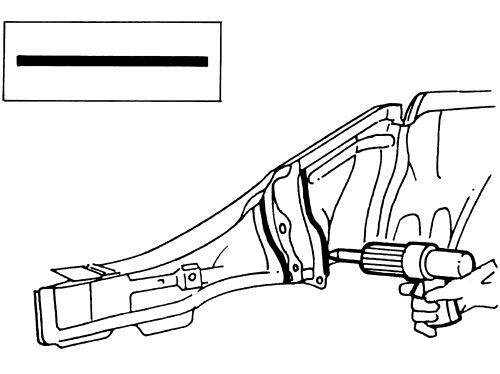

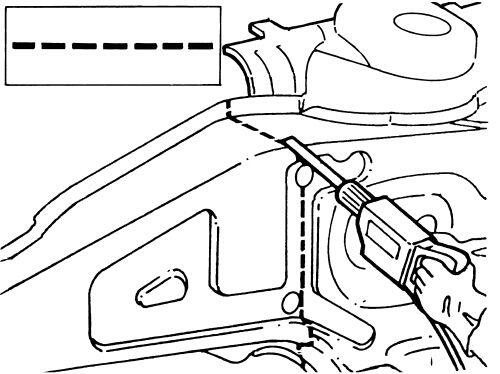

Shown below are the symbols of the processes that are described in the repair procedures with an example of their application. In the illustrations for the procedures, next to the number of the procedure steps for welding operations, sometimes there are numbers between parentheses that indicate the number of spot welds to be made or to filled by MIG welding.
