Vehicle Towing Points

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

When towing the vehicle you must comply with the specific traffic regulations, relating to the tow hook and the actions to take towing on the road. Thoroughly clean the threaded holes before screwing the hook. Before starting to tow, be sure to screw down the tow hook tightly. Make sure the ignition key is inserted into the relative ignition switch and that the steering lock is not engaged. With the engine off you do not have the help of the brake booster and power steering, so you need to exert more effort on both the brake pedal and on the steering wheel.

GC0165370Courtesy of CHRYSLER GROUP, LLC

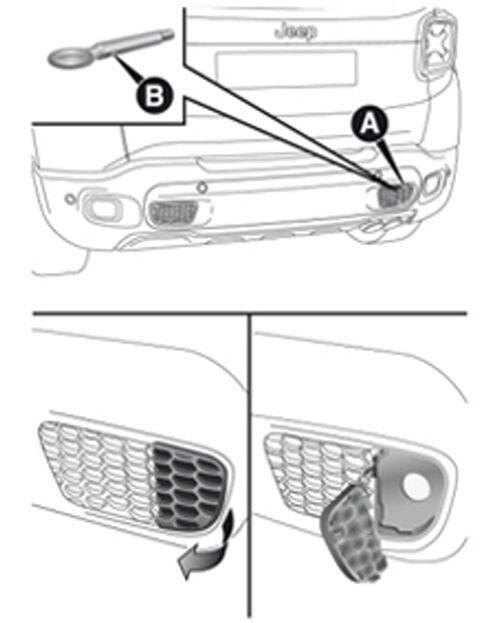

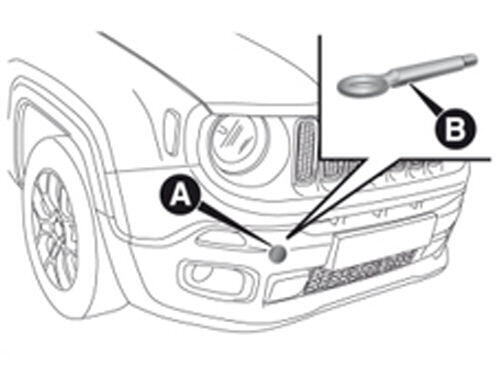

The vehicle is equipped with a threaded seat at the front and rear (A) for the installation of towing eye (B). The tow ring is located in the tool kit provided with the vehicle, located in the tool kit inside the trunk.

GC0166196Courtesy of CHRYSLER GROUP, LLC

TRAILHAWK VERSION

In these versions the towing hook is a fixed type and is anchored to the body of the car.
