Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

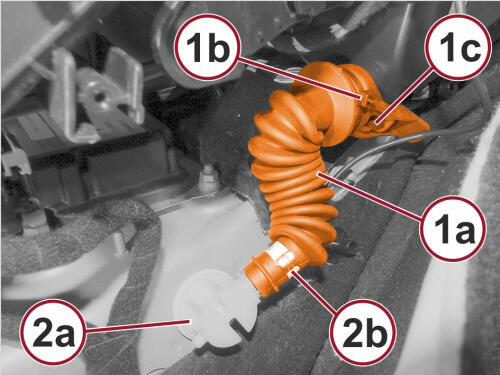

GC0164870Courtesy of CHRYSLER GROUP, LLC
  1. Connect the condensation drain tube (1a) to the floor coupling (2a) and install a new clamp (2b).
  2. Connect the condensation drain tube with clamp (1b) to the HVAC housing. Be certain the tube is fully engaged with the HVAC housing.

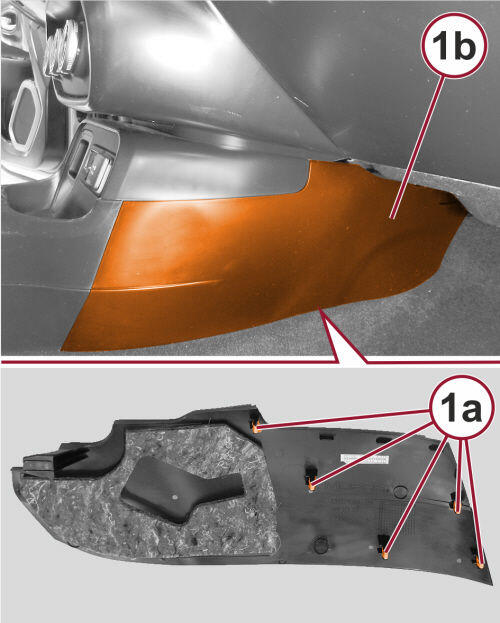

    GC0163593Courtesy of CHRYSLER GROUP, LLC
  3. Install the right side center console closeout (1b) to the center console. Be certain all retaining tabs (1a) are fully engaged with the console.
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
