1.4L - 2.4L Gas, 1.6L - 2.0L Turbo Diesel: Description
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
The A/C condenser is located in the front of the engine compartment behind the grille. The A/C condenser is a heat exchanger that allows the high-pressure refrigerant gas being discharged by the A/C compressor to give up its heat to the air passing over the condenser fins (2), which causes the refrigerant to cool and change to a liquid state.

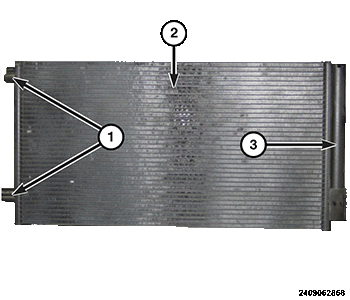

The A/C condenser (2) is equipped with tapping blocks for the discharge and liquid lines (1), integral mounting brackets and a integral A/C receiver/drier (3).
