1.0L - 1.3L: Description
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

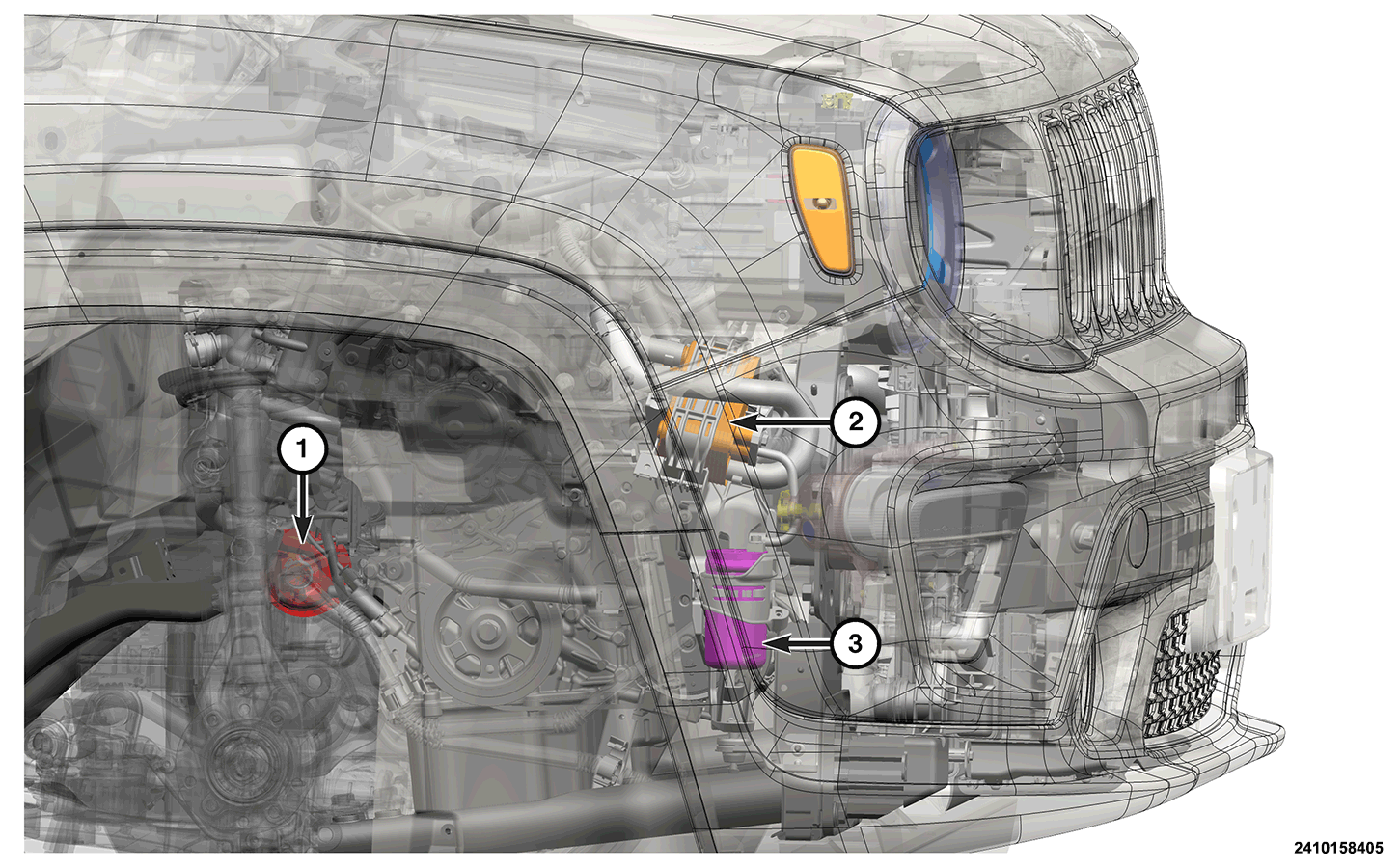

The 1.0L and 1.3L A/C condenser (2) is located in the right front of the engine compartment below the right front lamp assembly. The condenser incorporates two cooling passages inside a metal assembly that allows the transfer of heat to occur between two different media.
The A/C condenser (2) and receiver/drier (3) are serviced as an assembly and not serviced separately.
The A/C condenser (2) is equipped with tapping blocks for the discharge and liquid lines (1), integral mounting brackets and an integral A/C receiver/drier (3).
