Description And Operation: Description
Only use R-1234yf refrigerant and specific refrigerant oil for the climate control system compressor.
The vehicle is available with a manual or automatic dual zone climate control system.
With the automatic system, the operator can choose either automatic or manual operation. During automatic operation, the operator simply sets a target temperature. The Heating, Ventilation and Air Conditioning (HVAC) module determines the best combination of A/C compressor operation, mixing flap position, and outlet air direction and speed to control passenger compartment humidity and reach the target temperature using adjustments to the settings on the A/C Heater Control.
During manual operation, the operator can select A/C operation, air flow speed, air flow outlet location, and choose either fresh or recirculated air.
The HVAC module is located on the left side of the HVAC housing. The A/C heater control is integral to and located in the Integrated Center Stack (ICS).
Air conditioning components

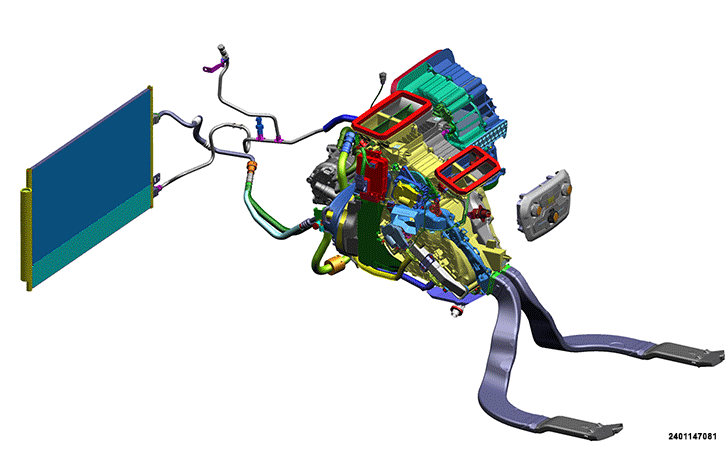

The positioning of the components of the automatic climate control system is shown below.

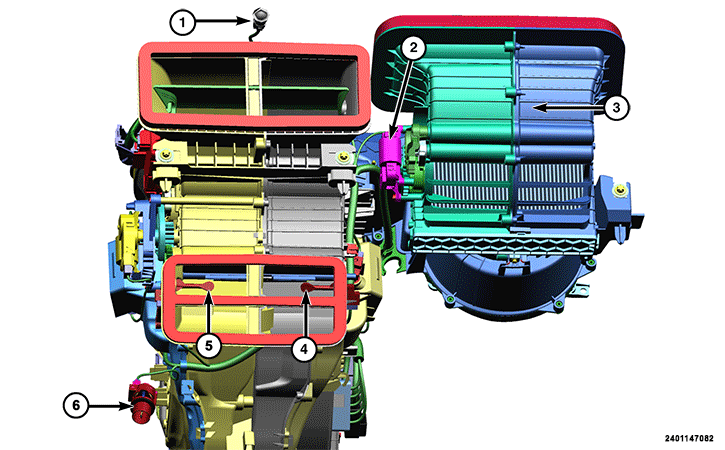

Climate control system assembly upper view
- Solar/dusk sensor (1)
- Recirculation actuator (2)
- Air recirculation housing (3)
- Air outlet temperature sensor upper right position (4)
- Air outlet temperature sensor upper left position (5)
- In-car temperature sensor (6)

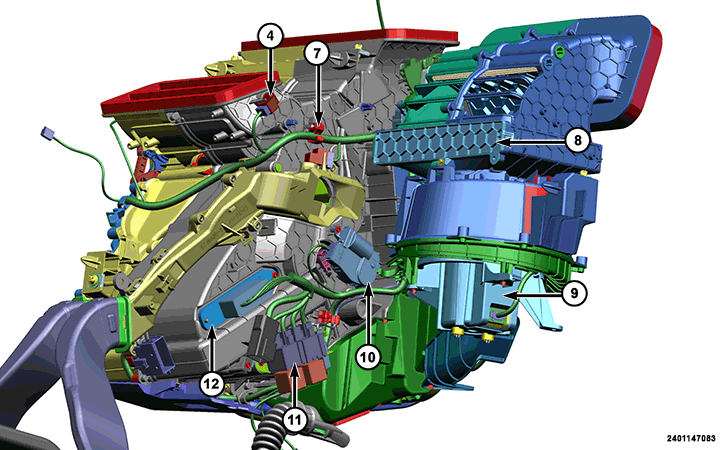

Right side view
- Air outlet temperature sensor upper right position (4)
- Air outlet temperature sensor lower right position (7)
- Compartment for cabin filter (8)
- Blower motor (9)
- Right blend door actuator (10)
- PTC activation relay panel (11)
- PTC plate (Cabin Heater) (12)

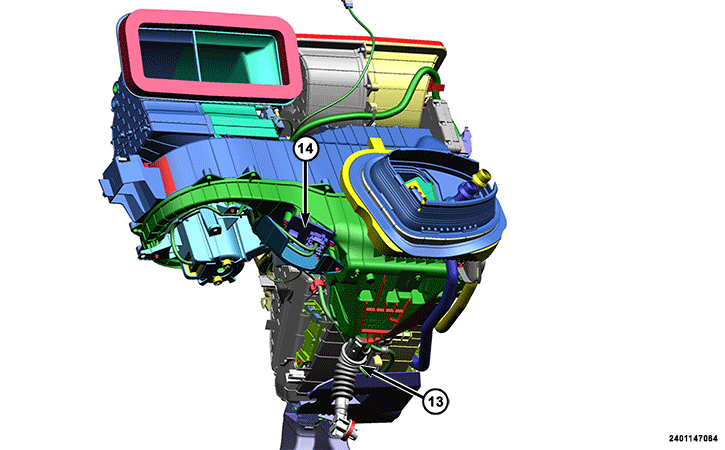

Lower view
- Condensation drainage tube (13)
- Blower motor power module (14)

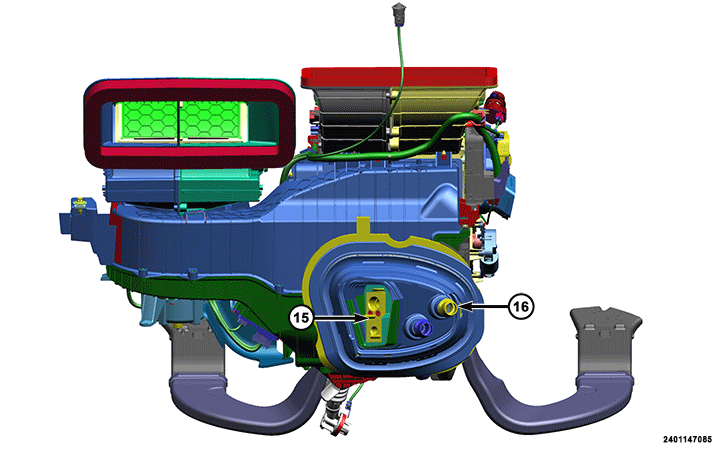

Front view
- Expansion valve (15)
- Heater core tubes (16)

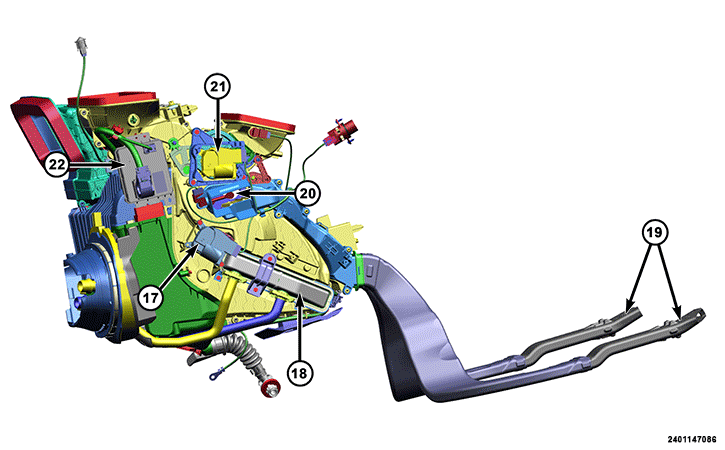

Left side view
- Left blend door actuator (17)
- Heater core (18)
- Rear ventilation ducts (19)
- Air outlet temperature sensor lower left position (20)
- Mode door actuator (21)
- HVAC module (22)
