Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Recover the refrigerant from the refrigerant system. Refer to R-1234YF REFRIGERANT SYSTEM RECOVERY  .

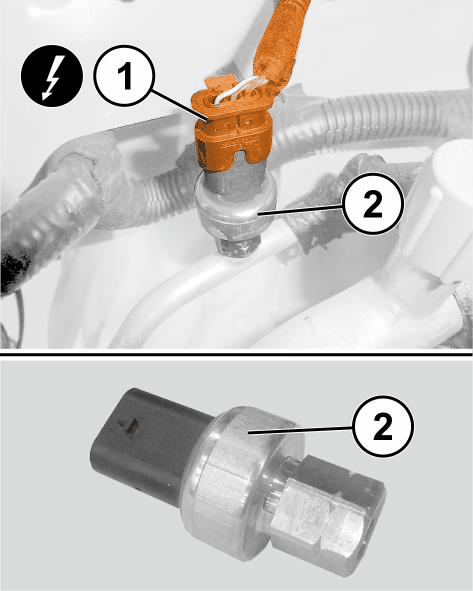

    GC0189863Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the wire harness connector (1) from the A/C pressure transducer (2).
  4. Remove the A/C pressure transducer (2) from the A/C liquid line. Remove and discard the O-ring seal.
