Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

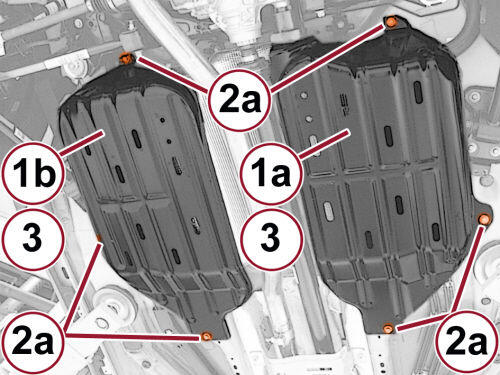

GC0165159Courtesy of CHRYSLER GROUP, LLC
  1. Raise and support the vehicle

    Refer to HOISTING, STANDARD PROCEDURE .

  2. Support the fuel tank shields (1a, 1b) with a suitable supporting device.
  3. Remove the fasteners (2a) and remove the fuel tank shields from the vehicle.
