Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

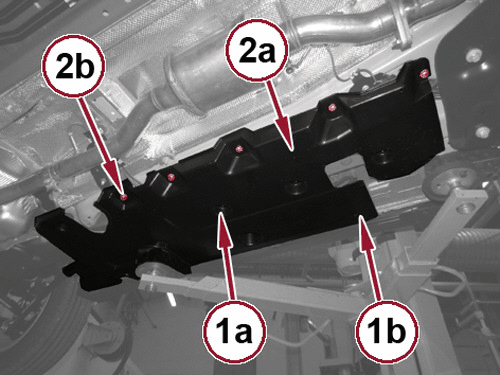

GC0189912Courtesy of CHRYSLER GROUP, LLC

INSTALLATION - LEFT SIDE

  1. Install the underbody side belly pan (1a) and secure the retainers (1b).
  2. Tighten the nuts (2a) and the screws (2b) attaching the underbody side belly pan.

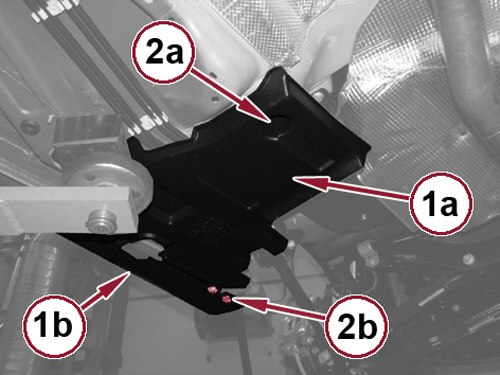

GC0189293Courtesy of CHRYSLER GROUP, LLC

INSTALLATION - RIGHT SIDE

  1. Install the underbody side belly pan (1a) and secure the retainers (1b).
  2. Tighten the nuts (2a) and the screws (2b) attaching the underbody side belly pan.
