Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

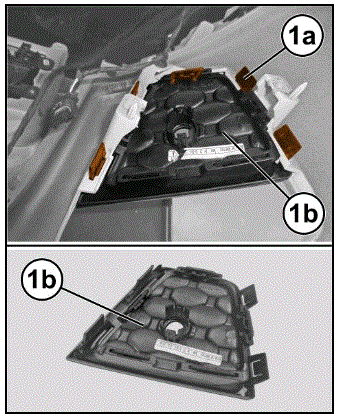

G00588831Courtesy of CHRYSLER GROUP, LLC
  1. Remove the wheelhouse splash shield on the side of the vehicle being worked on. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL .
  2. Remove the park sensors, if equipped. Refer to SENSOR, PARK ASSIST, REMOVAL AND INSTALLATION .
  3. Working from the inside of the fascia, release the retainer clips (1a) and remove the fascia cover (1b).
