Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right front wheel and splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .
  2. Remove the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
  3. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION  .
  4. Remove the cylinder head cover. Refer to COVER(S), CYLINDER HEAD, REMOVAL AND INSTALLATION  .
  5. Remove the air cleaner assembly. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION  .
  6. Remove the accessory drive belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .
  7. Remove the crank pulley. Refer to DAMPER, VIBRATION, REMOVAL AND INSTALLATION  .
  8. Remove the water pump pulley. Refer to PUMP, WATER, REMOVAL AND INSTALLATION .
  9. Remove the timing belt. Refer to CHAIN AND SPROCKETS, TIMING, REMOVAL AND INSTALLATION  .

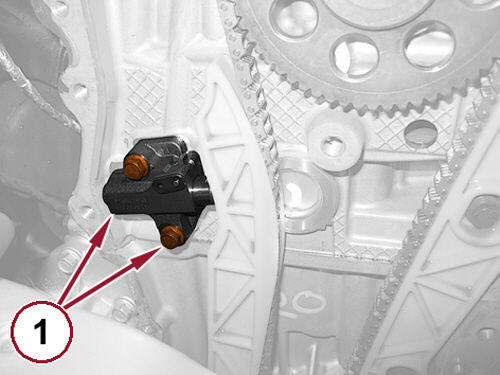

    GC0163230Courtesy of CHRYSLER GROUP, LLC
  10. Remove the screws (1) and remove the tensioner.
