Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right front wheel and splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .
  2. Remove the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
  3. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION  .
  4. Remove the cylinder head cover. Refer to COVER(S), CYLINDER HEAD, REMOVAL AND INSTALLATION  .
  5. Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION  .
  6. Remove the accessory drive belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION .
  7. Remove the vibration damper. Refer to DAMPER, VIBRATION, REMOVAL AND INSTALLATION  .
  8. Remove the water pump pulley. Refer to PUMP, WATER, REMOVAL AND INSTALLATION .
  9. Remove the generator

    Refer to GENERATOR, REMOVAL AND INSTALLATION .

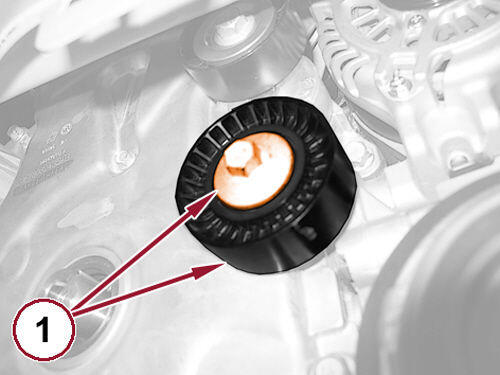

    GC0163665Courtesy of CHRYSLER GROUP, LLC
  10. Remove the bolt (1) and remove the accessory drive belt idler pulley.

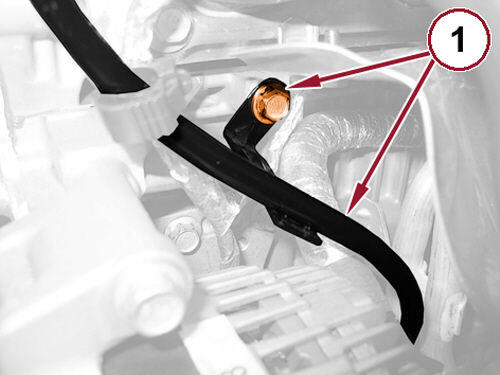

    GC0163390Courtesy of CHRYSLER GROUP, LLC
  11. Remove the bolt (1) and remove the engine oil dipstick tube.

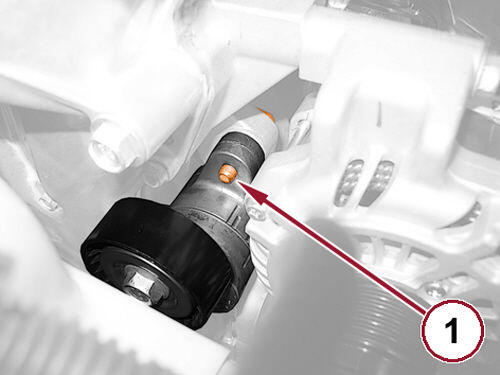

    GC0165309Courtesy of CHRYSLER GROUP, LLC
  12. Remove the top bolt (1) from the accessory drive belt tensioner.

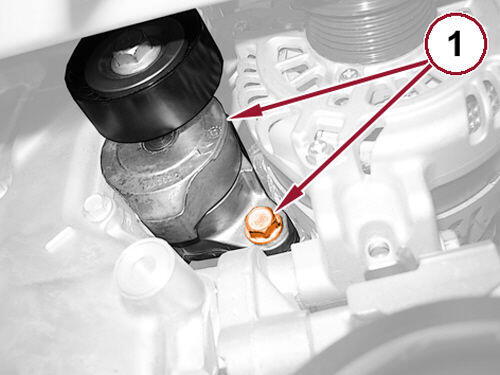

    GC0164729Courtesy of CHRYSLER GROUP, LLC
  13. Remove the bolt (1) and remove the accessory drive belt tensioner.

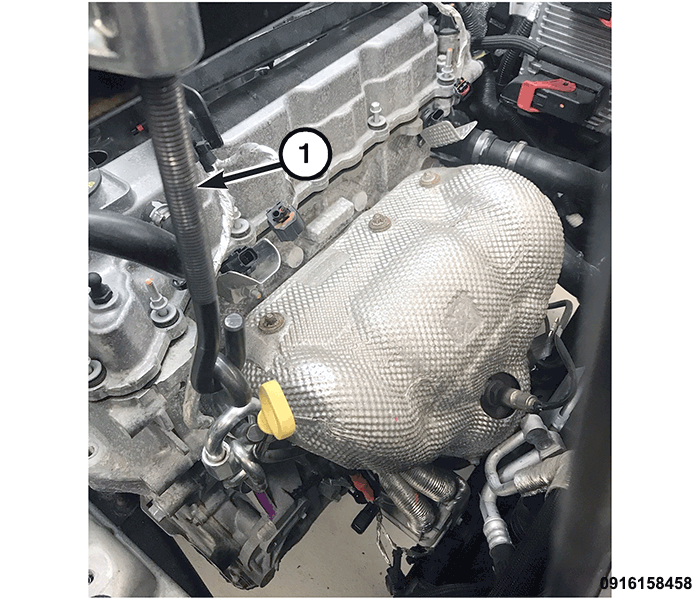

    GC0190117Courtesy of CHRYSLER GROUP, LLC
  14. Assemble the (special tool #8534C, Fixture, Driveline Support) (1).

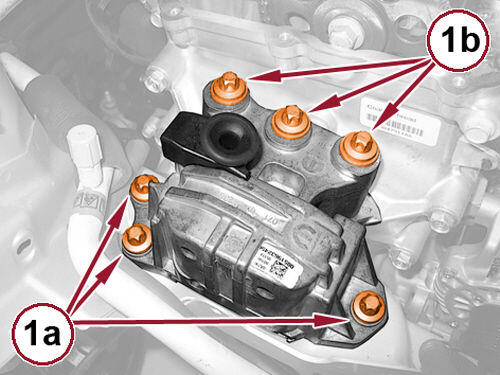

    GC0164554Courtesy of CHRYSLER GROUP, LLC
  15. Remove the bolts (1a) and (1b) and remove the right engine mount isolator.

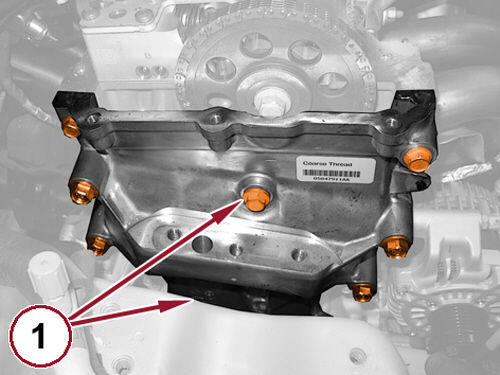

    GC0164312Courtesy of CHRYSLER GROUP, LLC
  16. Remove the upper bolts (1) securing the engine timing cover to the cylinder head.

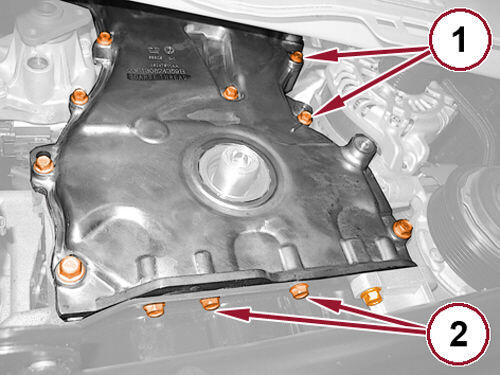

    GC0163810Courtesy of CHRYSLER GROUP, LLC
  17. Remove the bolts (1) securing the engine timing cover to the engine block.
  18. Remove the bolts (2) securing the engine timing cover to the engine oil pan.

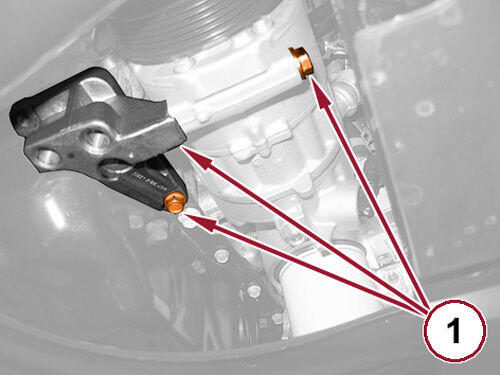

    GC0164660Courtesy of CHRYSLER GROUP, LLC
  19. Remove the bolts (1) and remove the A/C compressor support bracket.

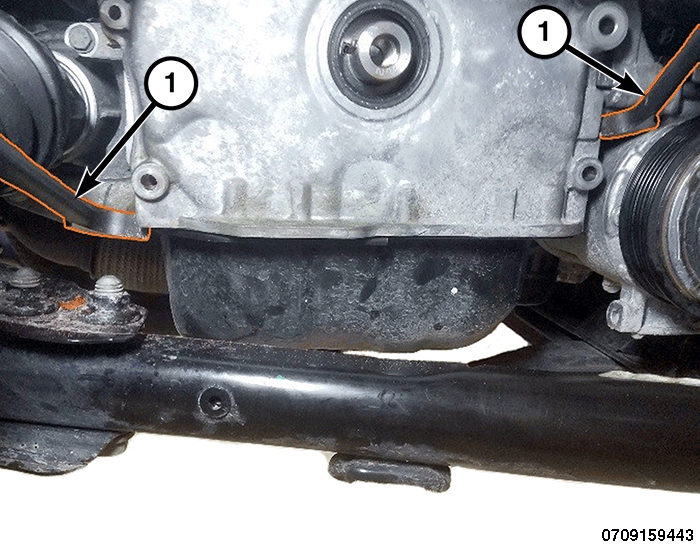

    GC0187039Courtesy of CHRYSLER GROUP, LLC
  20. Use a suitable tool (1) to release the timing chain cover from the sealant. To avoid bending the timing chain cover, release the lower flange first then release the upper flange.

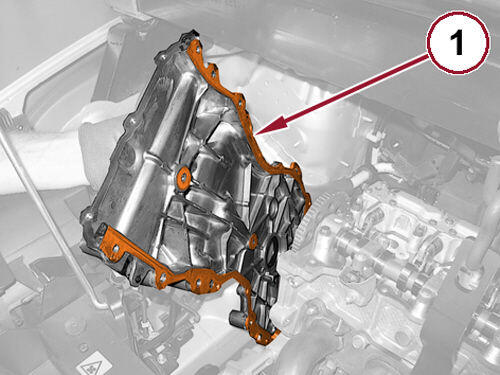

    GC0165802Courtesy of CHRYSLER GROUP, LLC
  21. Remove the engine timing cover (1).
  22. Remove the residual silicone gasket material from the cover and check the integrity of the centering bushings.
  23. Pry off and remove the front crankshaft oil seal from the timing cover.
